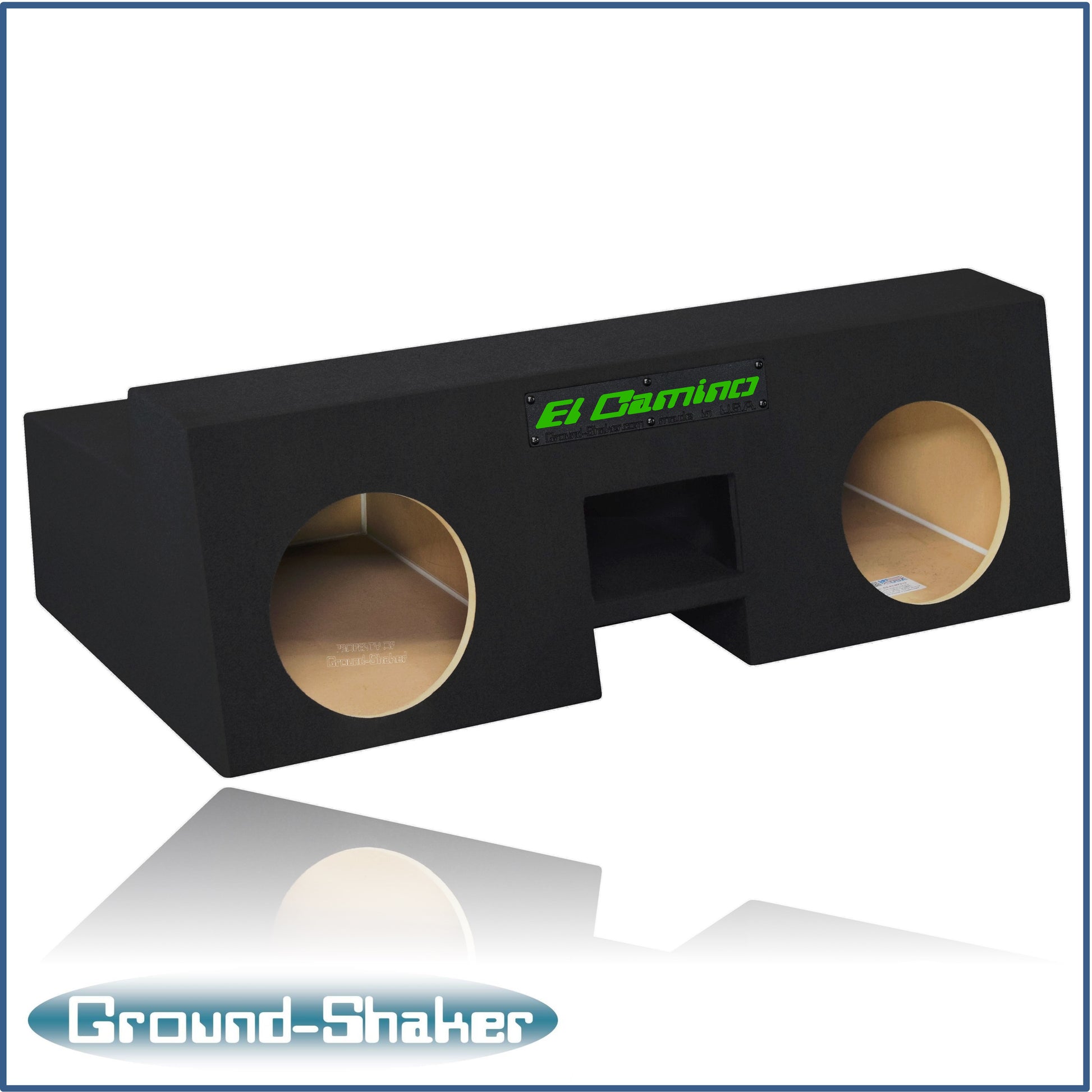

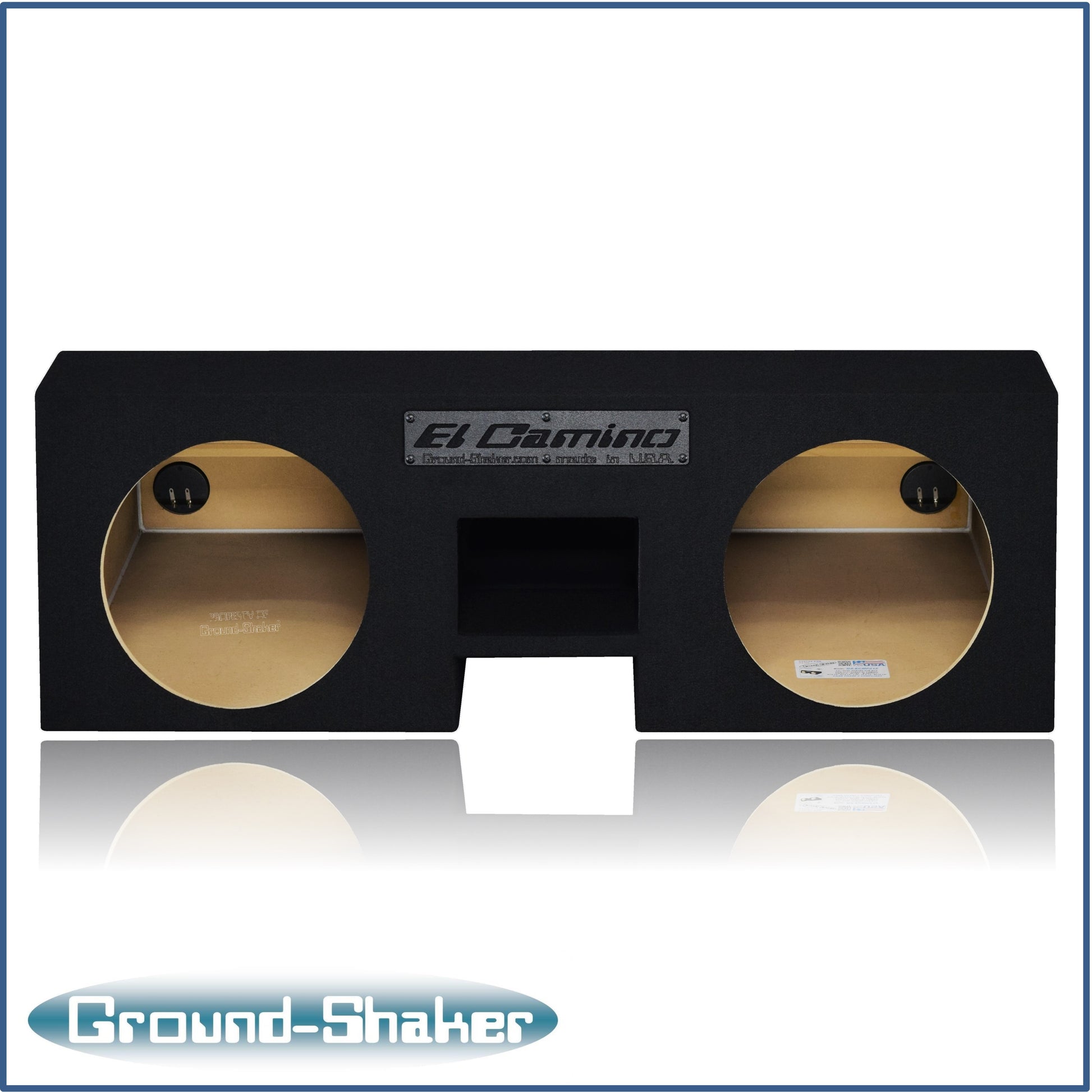

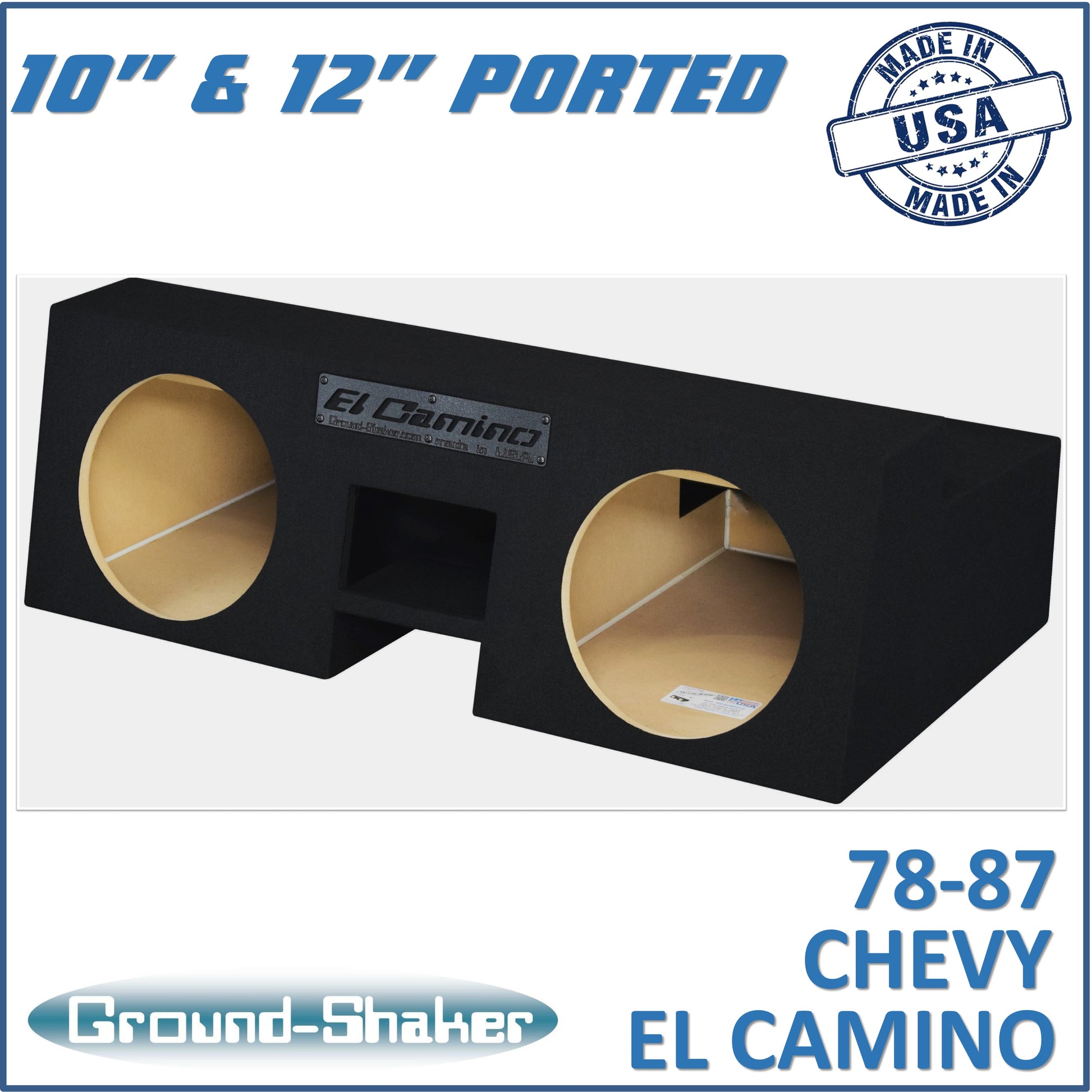

ECMP210

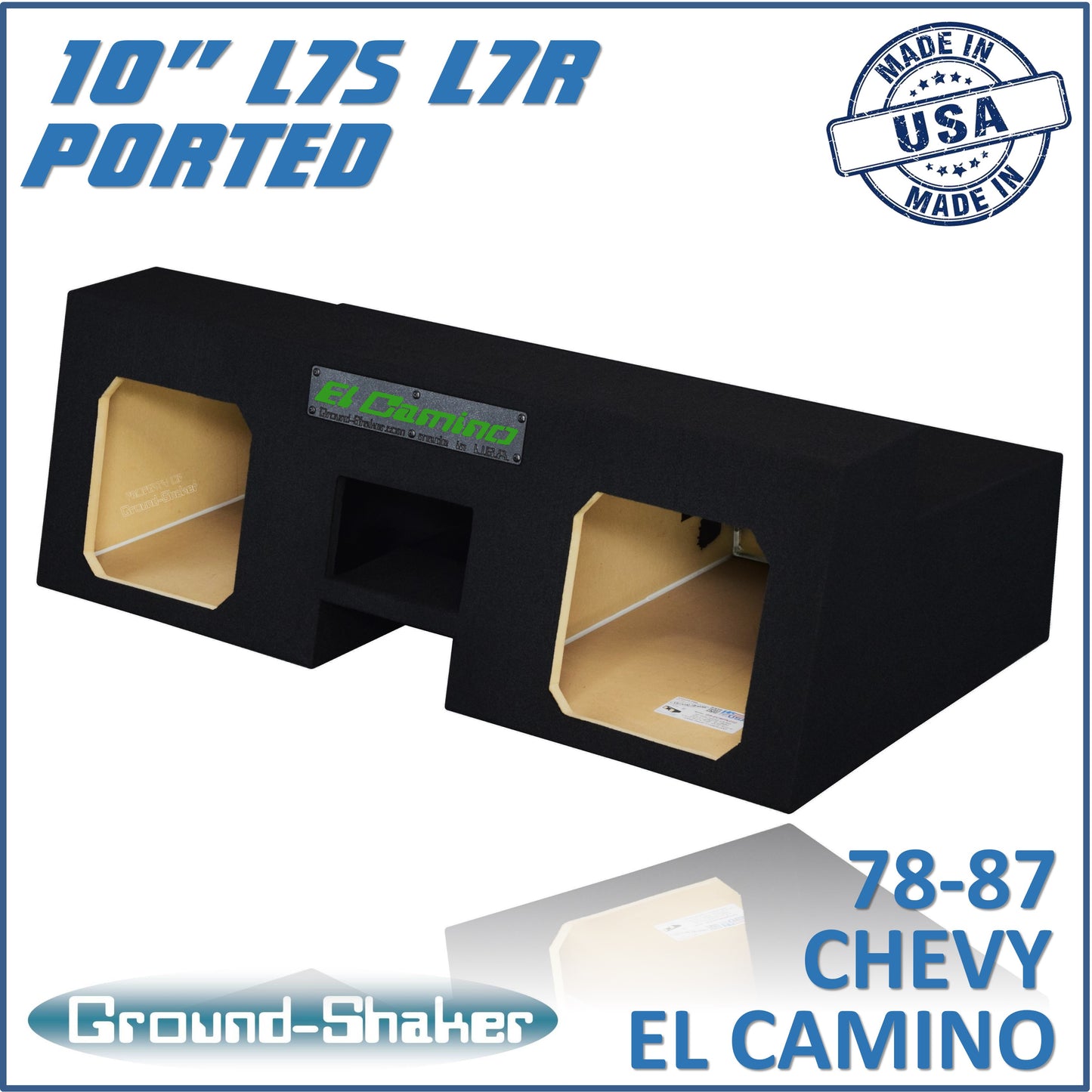

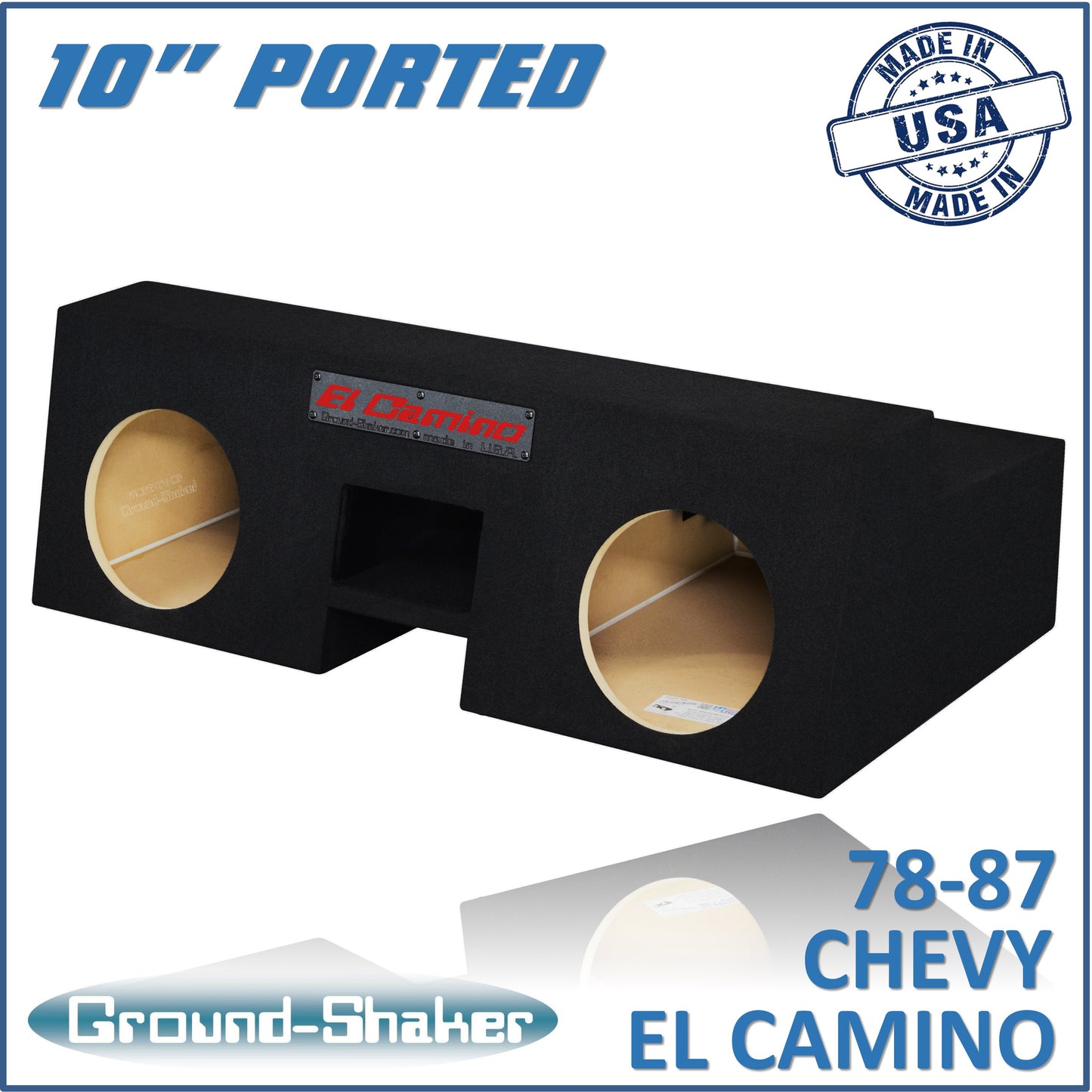

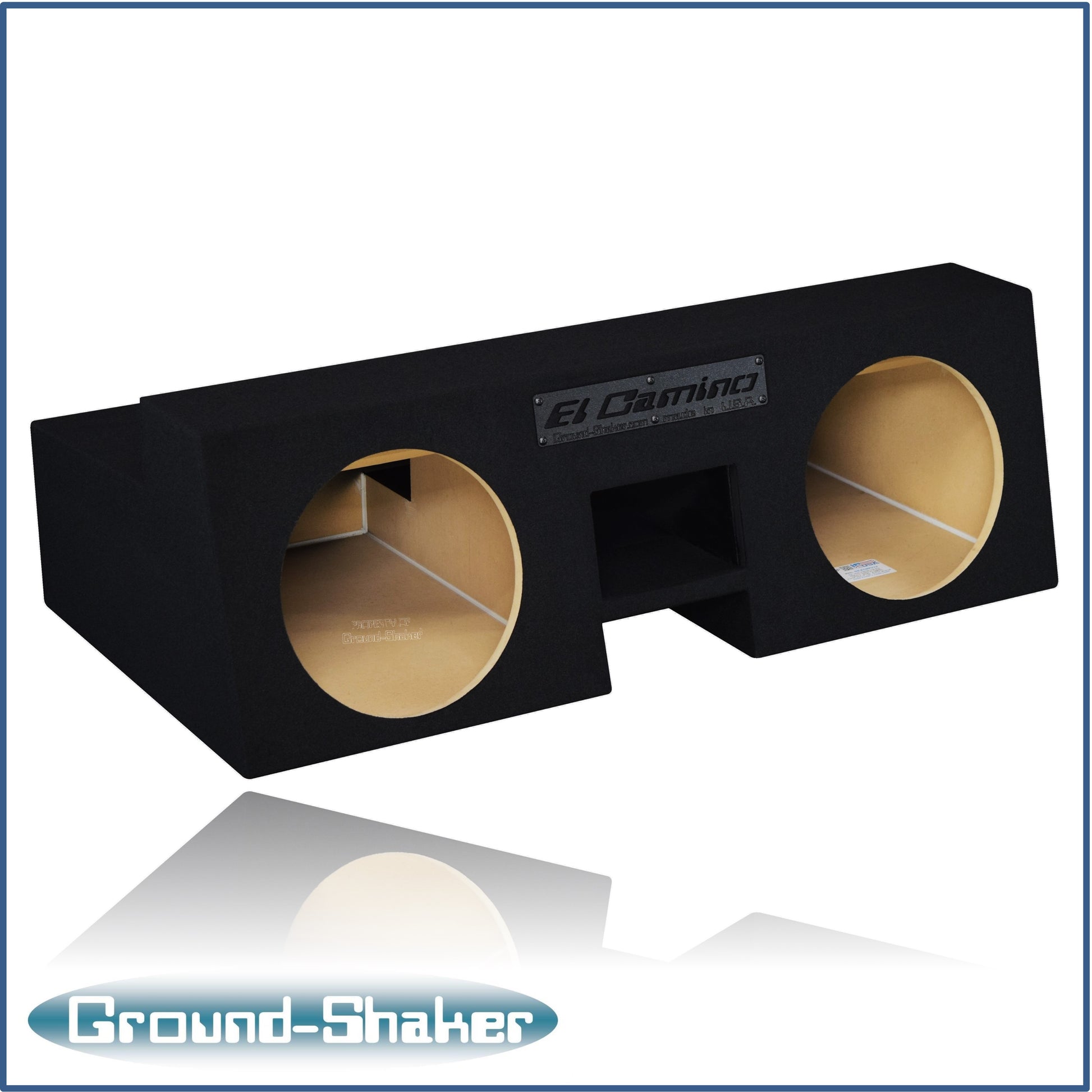

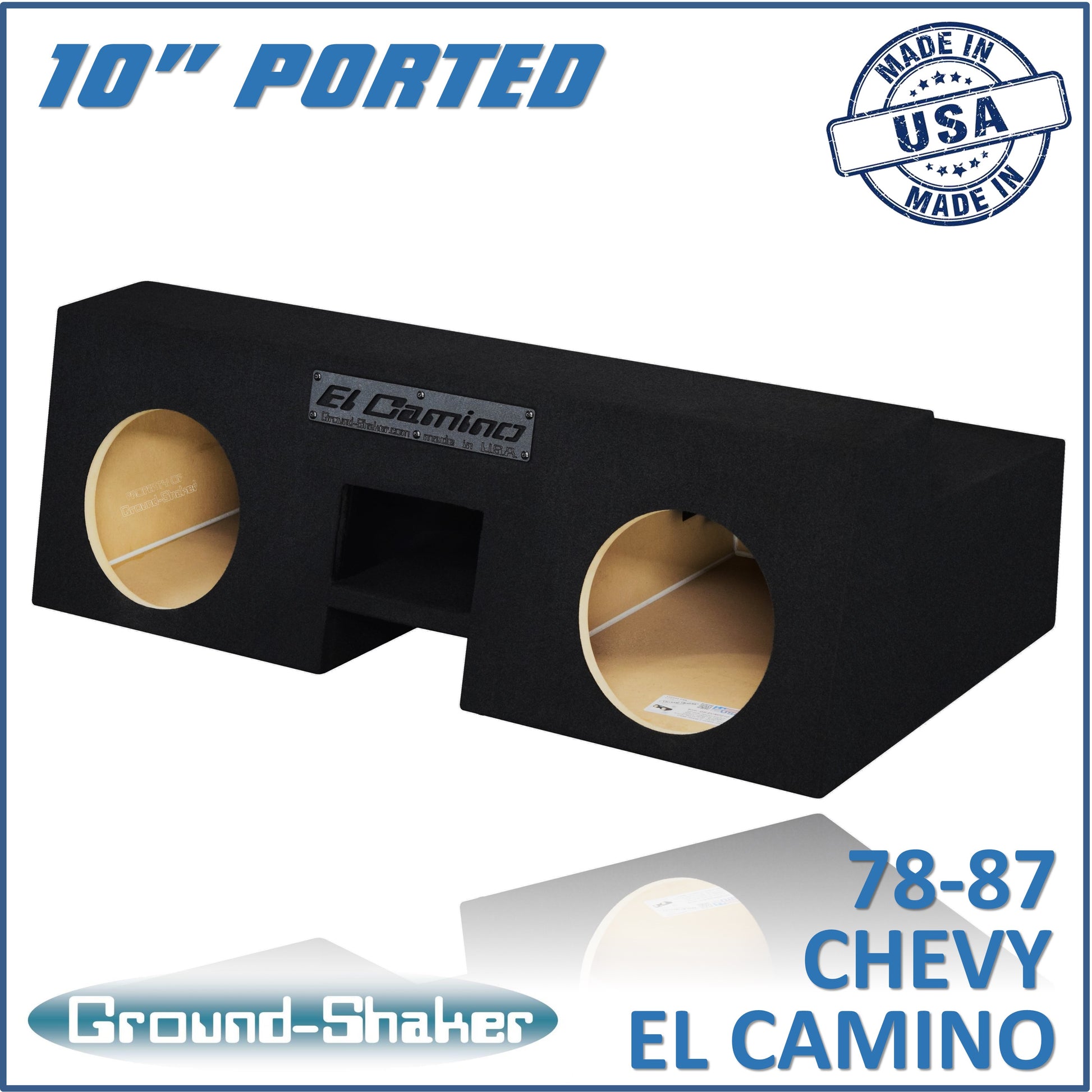

GROUND-SHAKER 10" DUAL PORTED S

SPECIFICATIONS:

-CUTOUT DIAMETER: 9 1/4"

-AIR VOLUME: 4.25 FT^3

-TUNING FREQUENCY: 35-Hz

-1 SLOT PORT (DIMENSIONS: H-7.5” W-5.5” L-16”)

-WEIGHT: 66 LBS.

-MOUNTING DEPTH: 8"

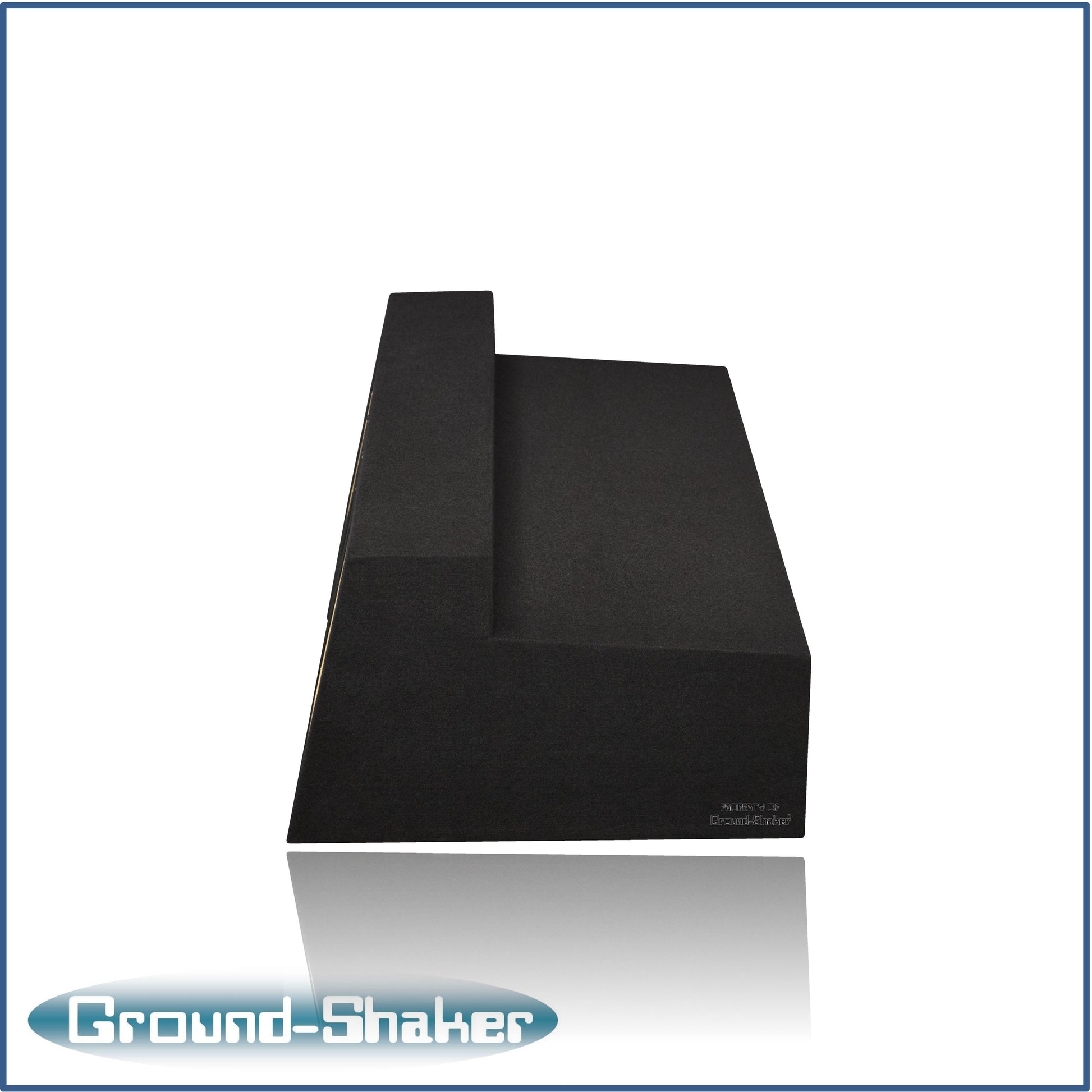

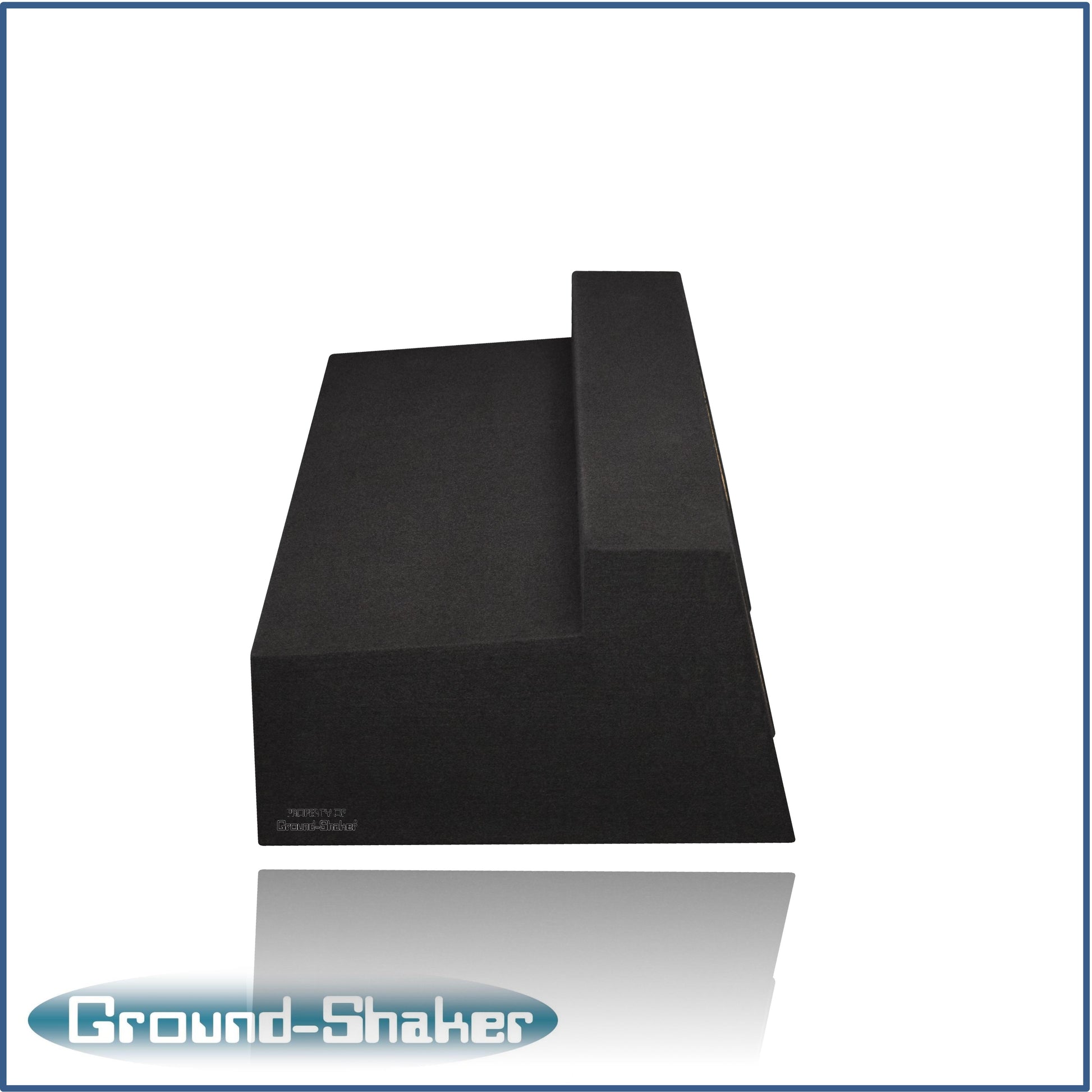

DIMENSIONS:

-FRONT HEIGHT: 14 1/4”

-REAR HEIGHT: 9”

-LENGTH: 42"

-TOP DEPTH: 6 1/4"

-BOTTOM DEPTH: 23 1/4"

CONSTRUCTION:

-3/4" HIGH DENSITY MDF WOOD

-CARPETED WITH DURABLE TRUNK LINER FINISH

-SEALED WITH HIGH QUALITY TITEBOND SILICONE

-GLUED WITH HIGH QUALITY TITEBOND WOOD GLUE

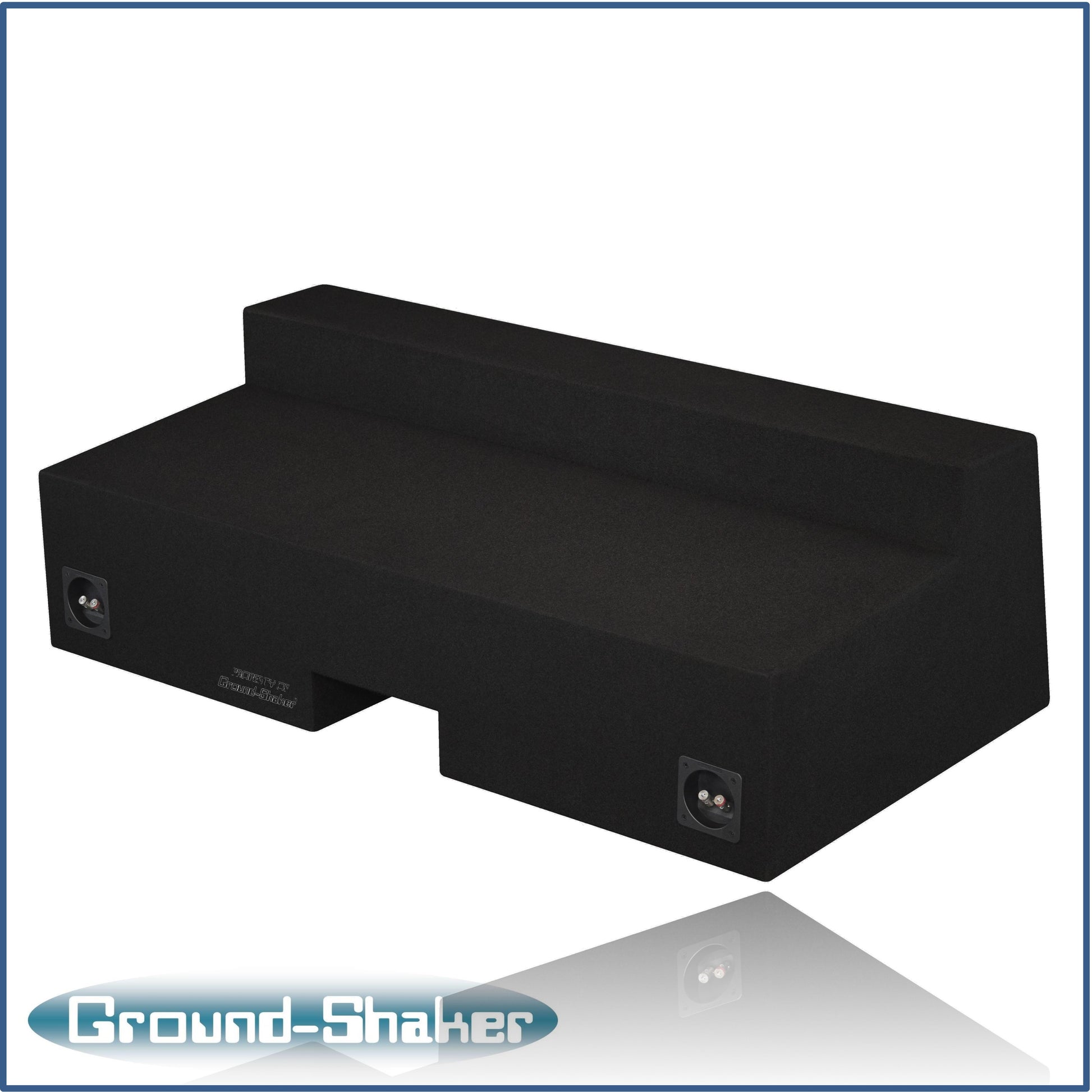

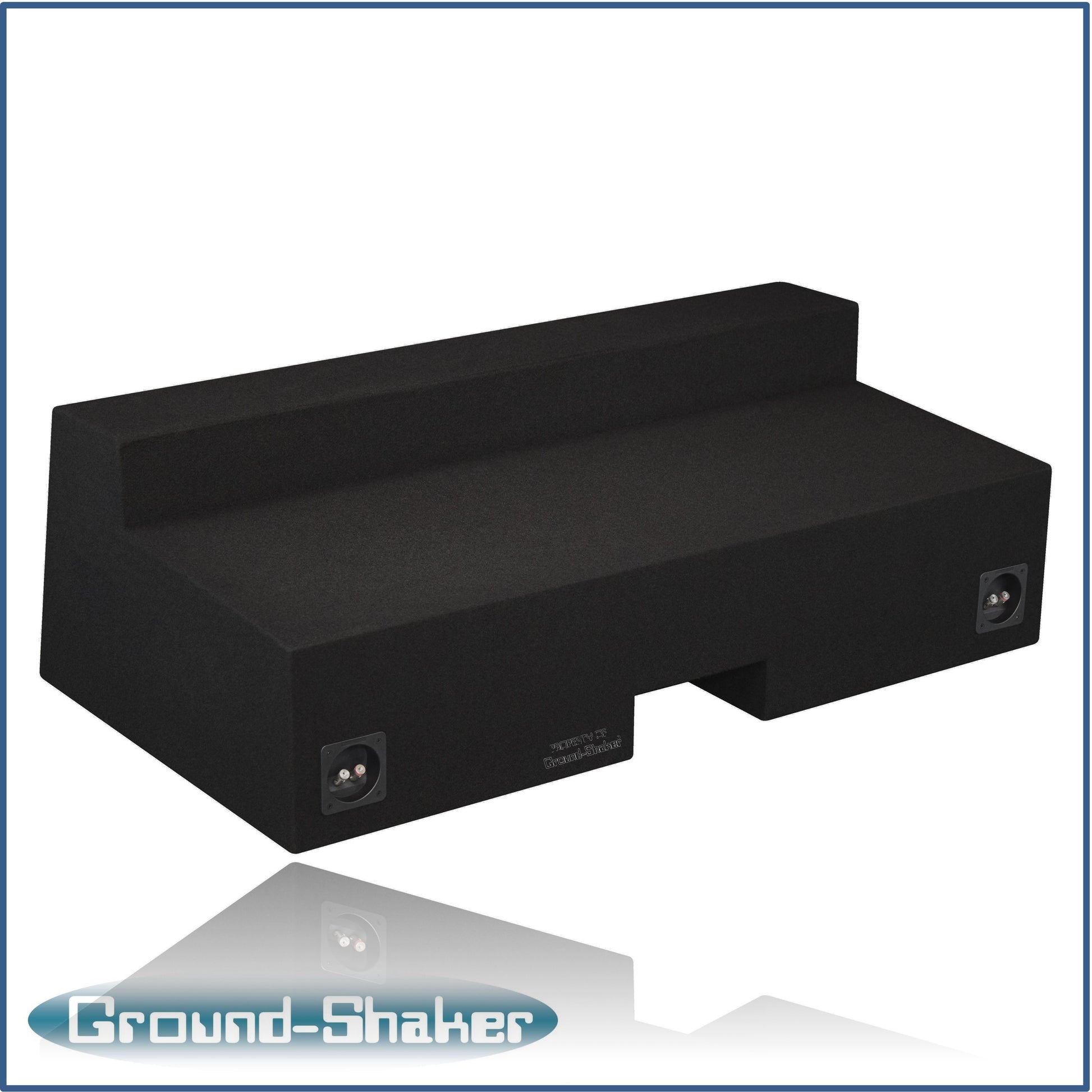

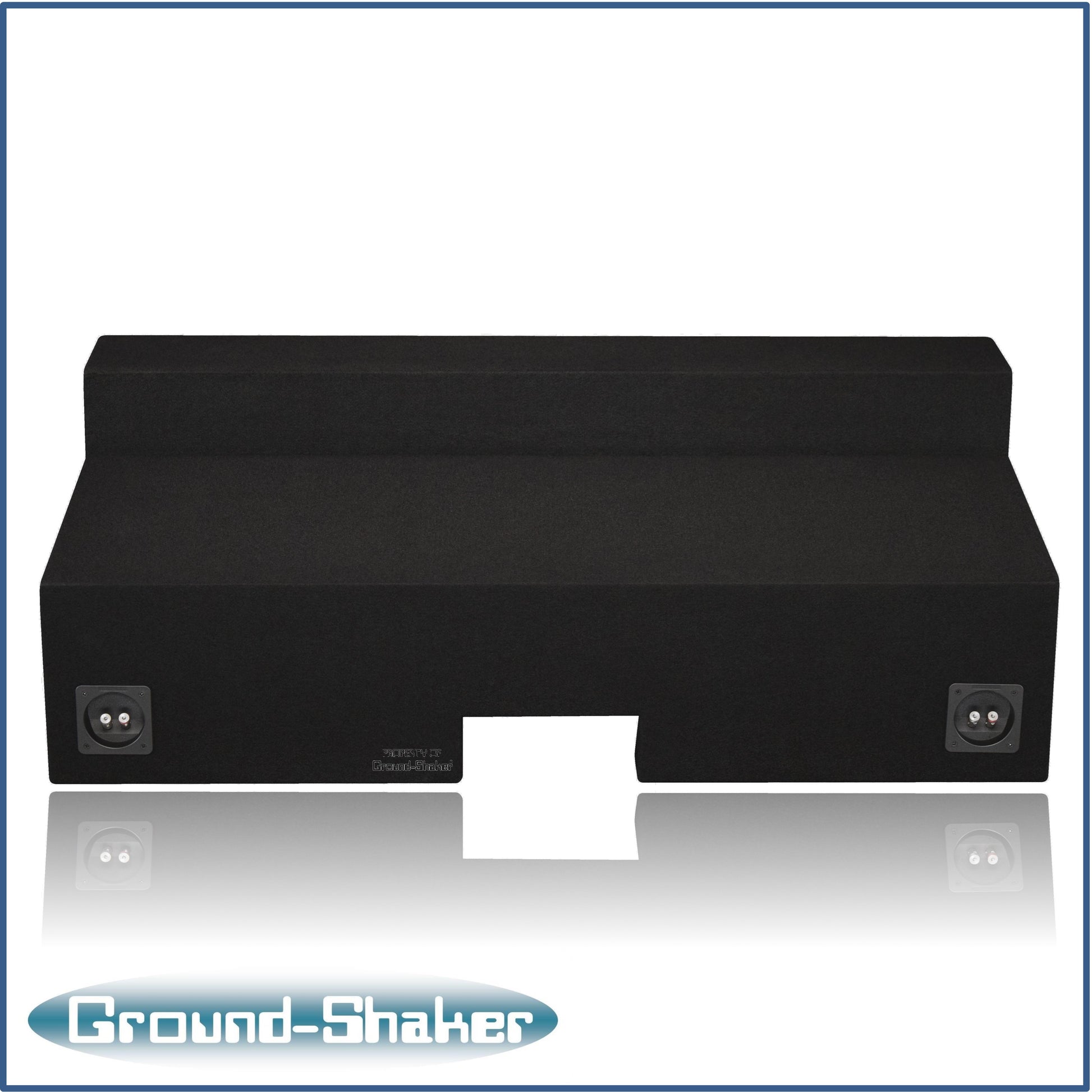

-2 SPRING LOADED TERMINALS

INSTALLATION:

-FITS BEHIND SEAT

-FORWARD FIRING

UB BOX, FITS 78-87 CHEVY EL CAMINO
