PBP110

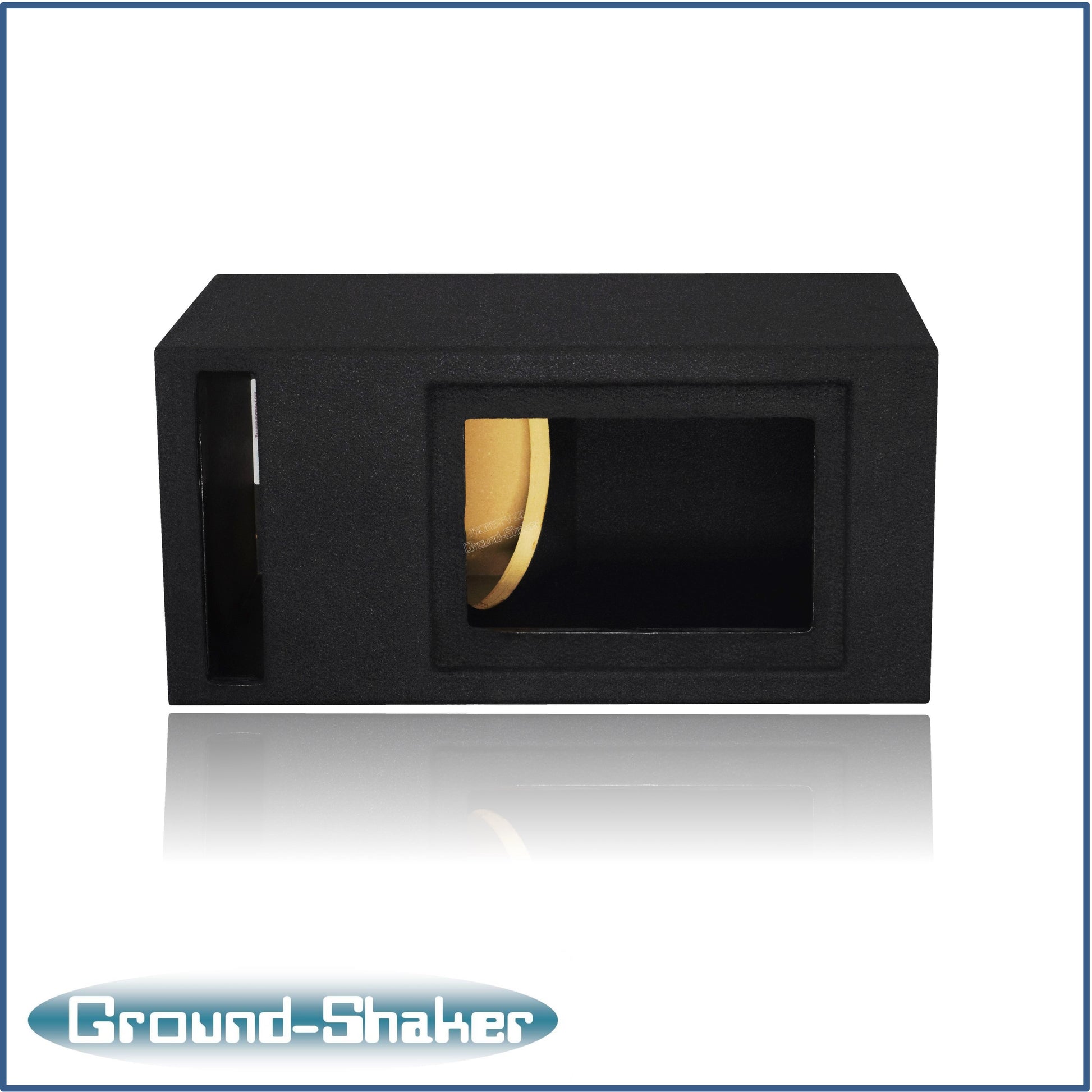

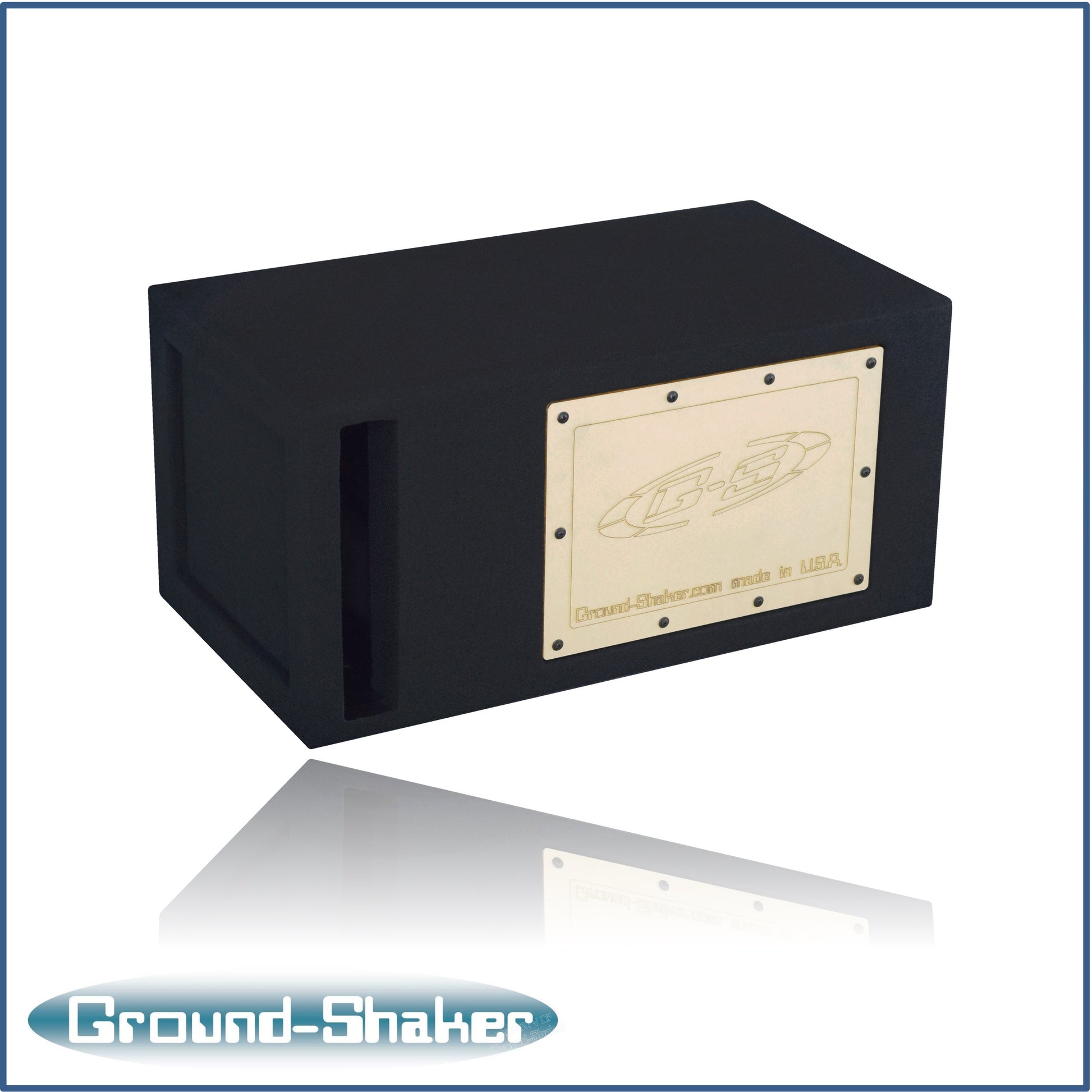

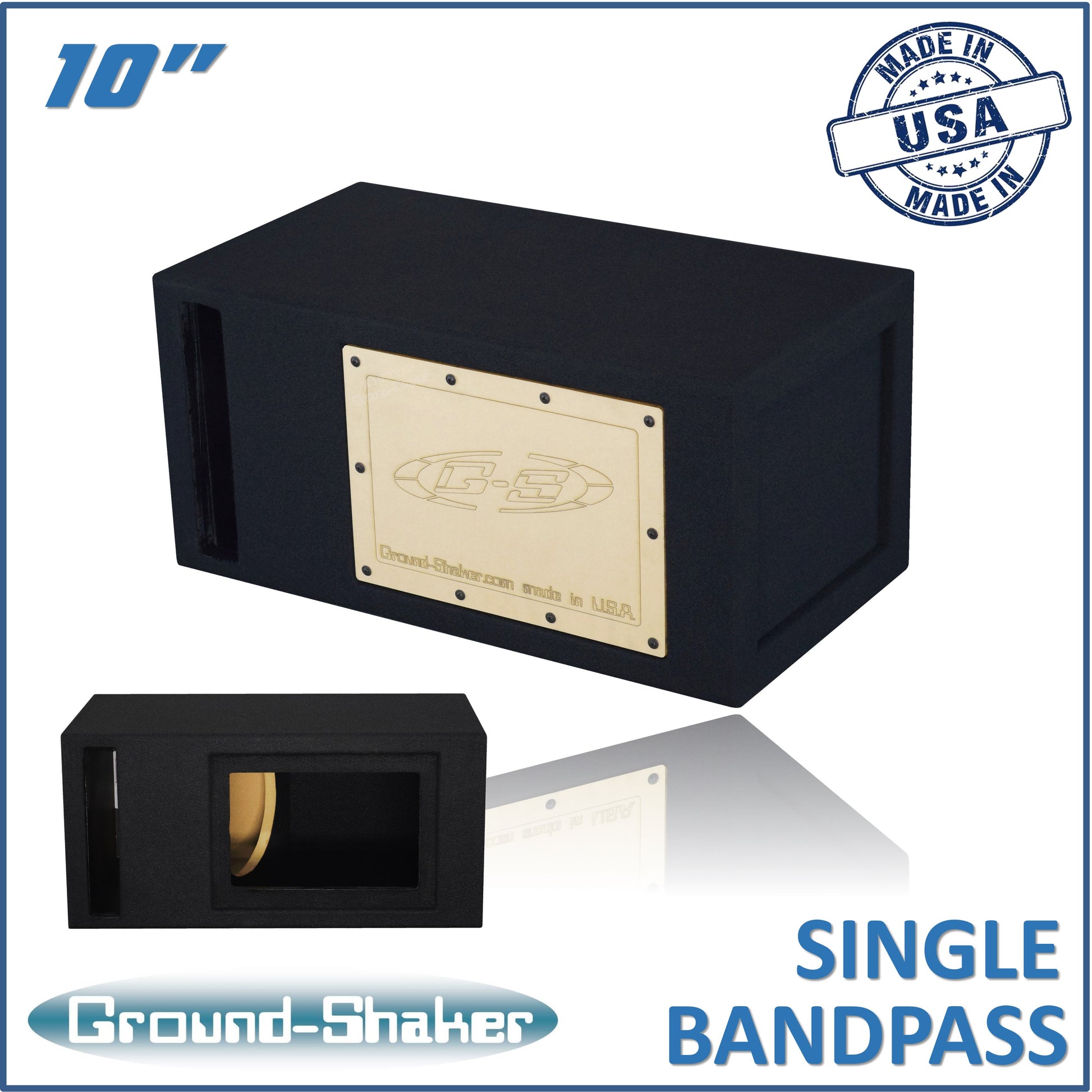

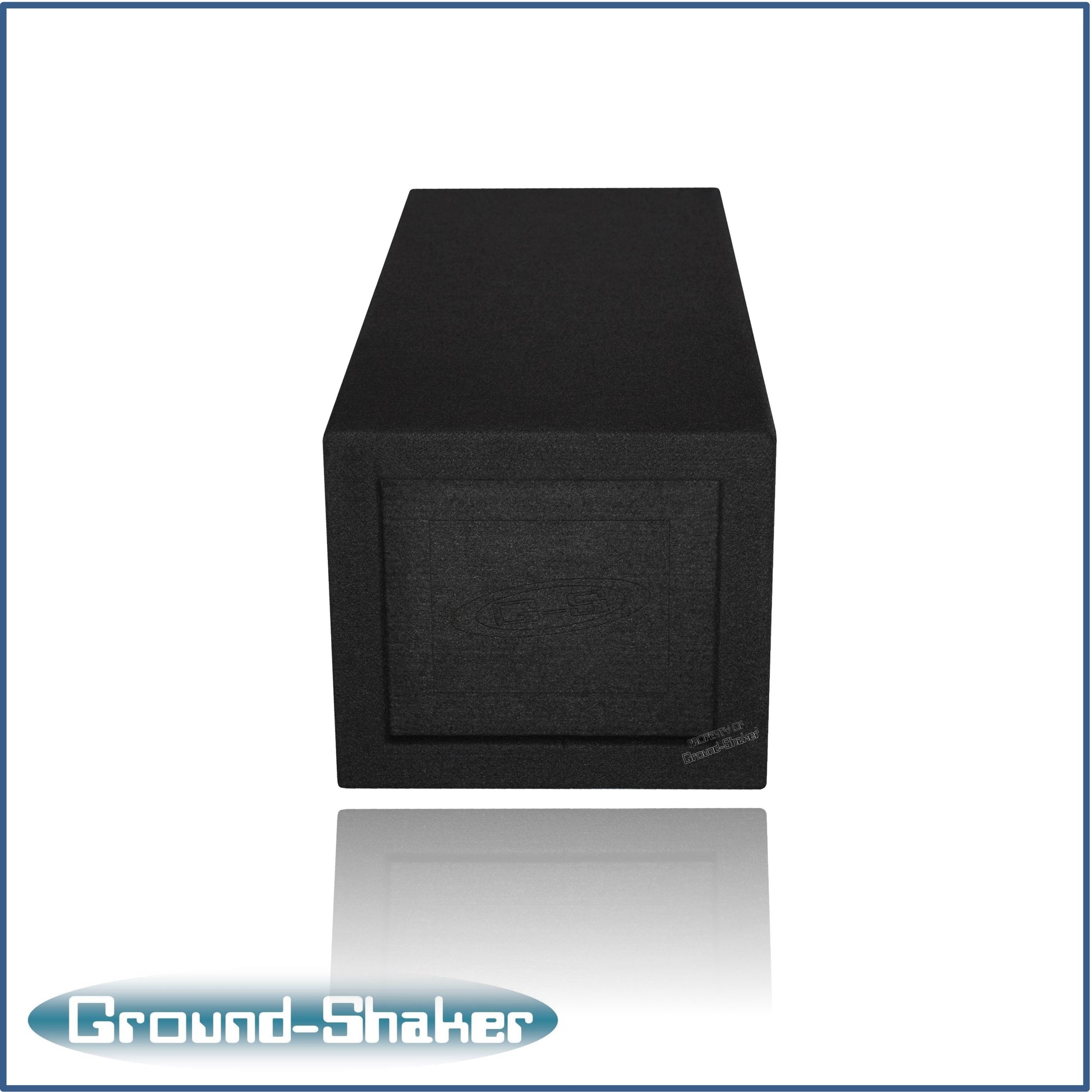

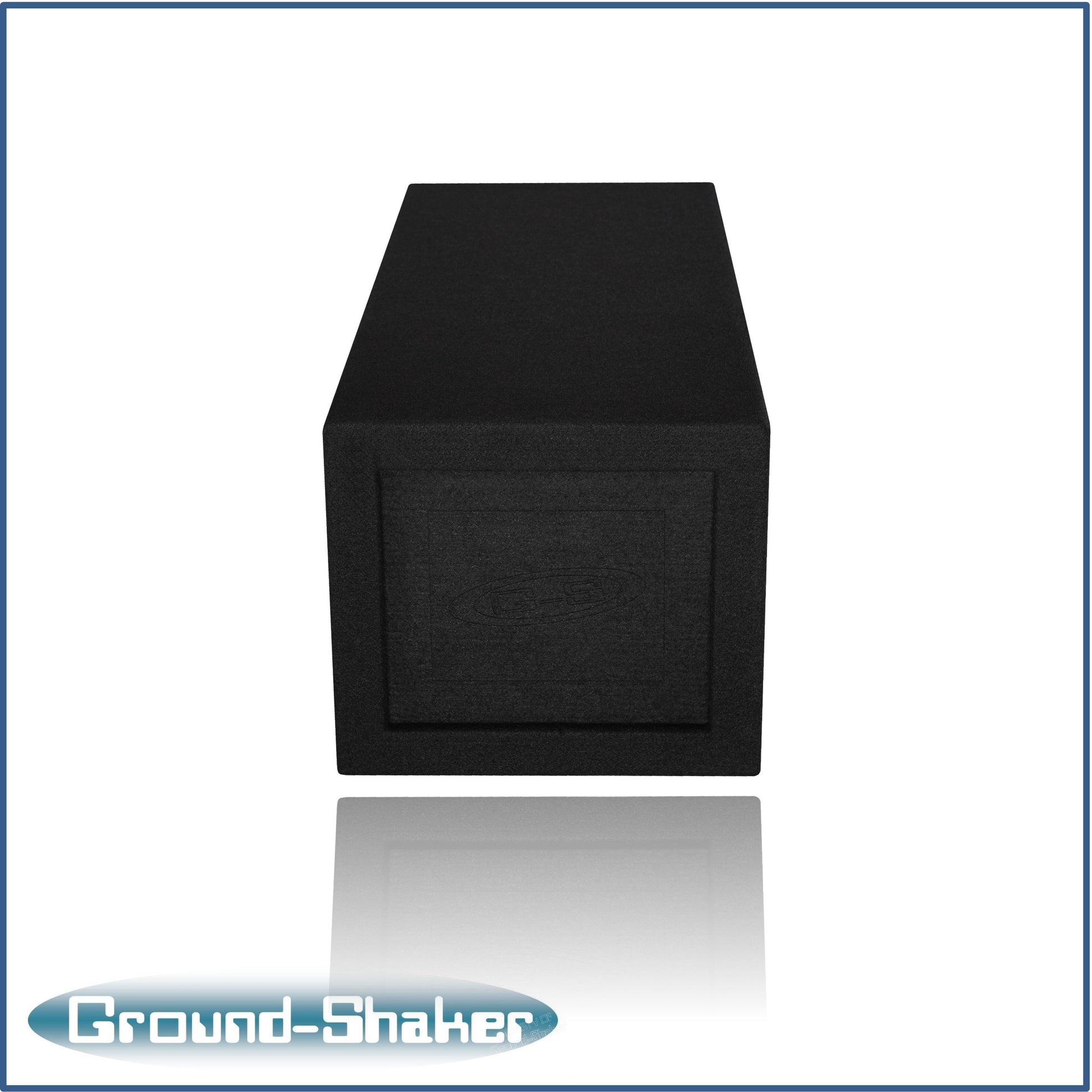

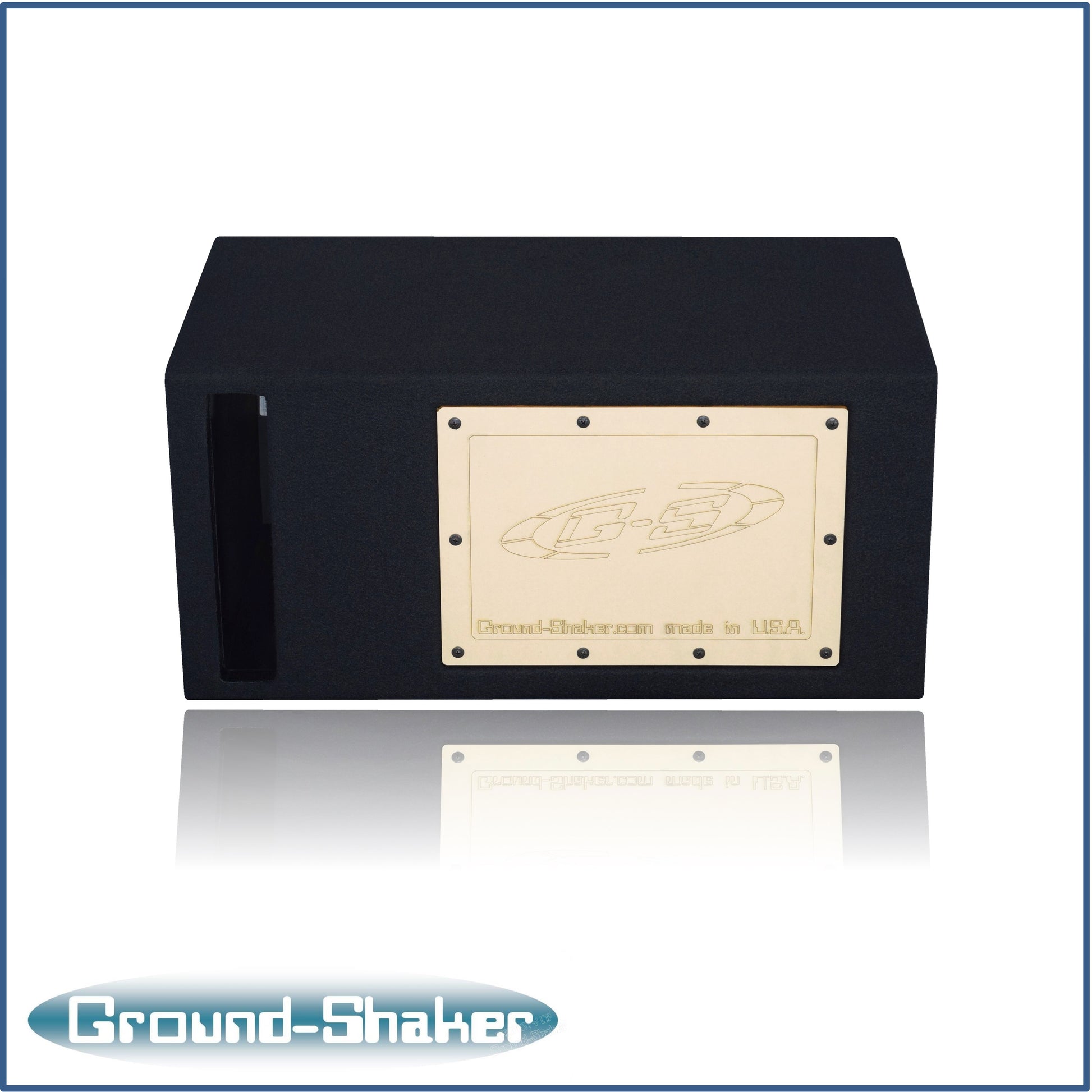

GROUND-SHAKER 10" SINGLE SLOT PORTED BANDPASS SUB BOX

SPECIFICATIONS:

-CUTOUT DIAMETER: 9 1/4"

-MAXIMUM SUBWOOFER OUTER DIAMETER 10 5/8”

-TOTAL AIR VOLUME: 1.65 FT^3

-SEALED CHAMBER AIR VOLUME: 1.02 FT^3

-TUNING FREQUENCY: 34-Hz

-1 SLOT PORT (DIMENSIONS: H-10 3/4” W-2” L-5”)

-WEIGHT: 29 LBS.

-MOUNTING DEPTH: 5 1/2" (MAXIMUM MAGNET WIDTH 6”)

DIMENSIONS:

-HEIGHT: 12 1/4”

-LENGTH: 25 1/4"

-DEPTH: 13 3/4"

CONSTRUCTION:

-5/8” HIGH QUALITY MDF WOOD

-CARPETED WITH DURABLE TRUNK LINER FINISH

-GLUED WITH HIGH QUALITY TITEBOND WOOD GLUE

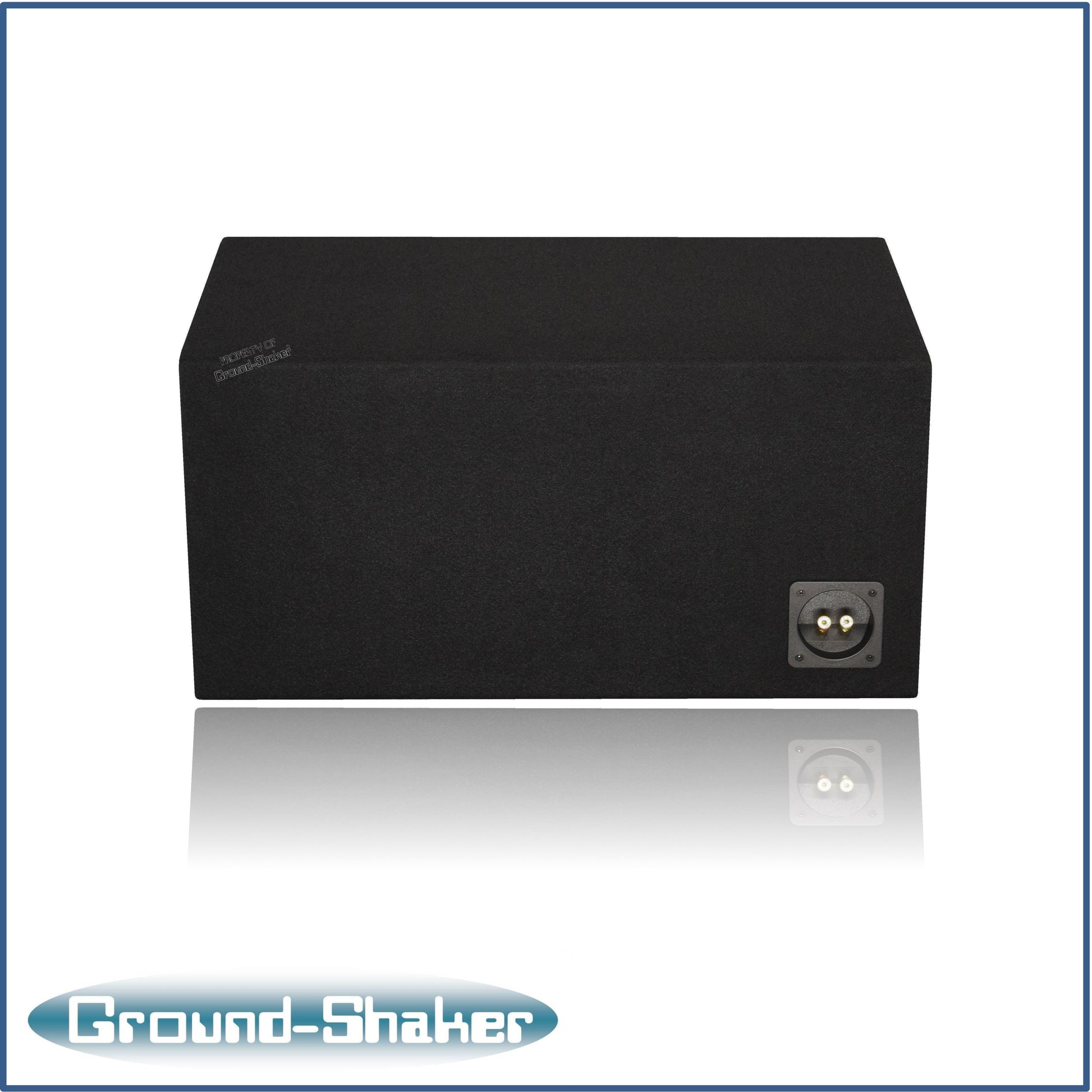

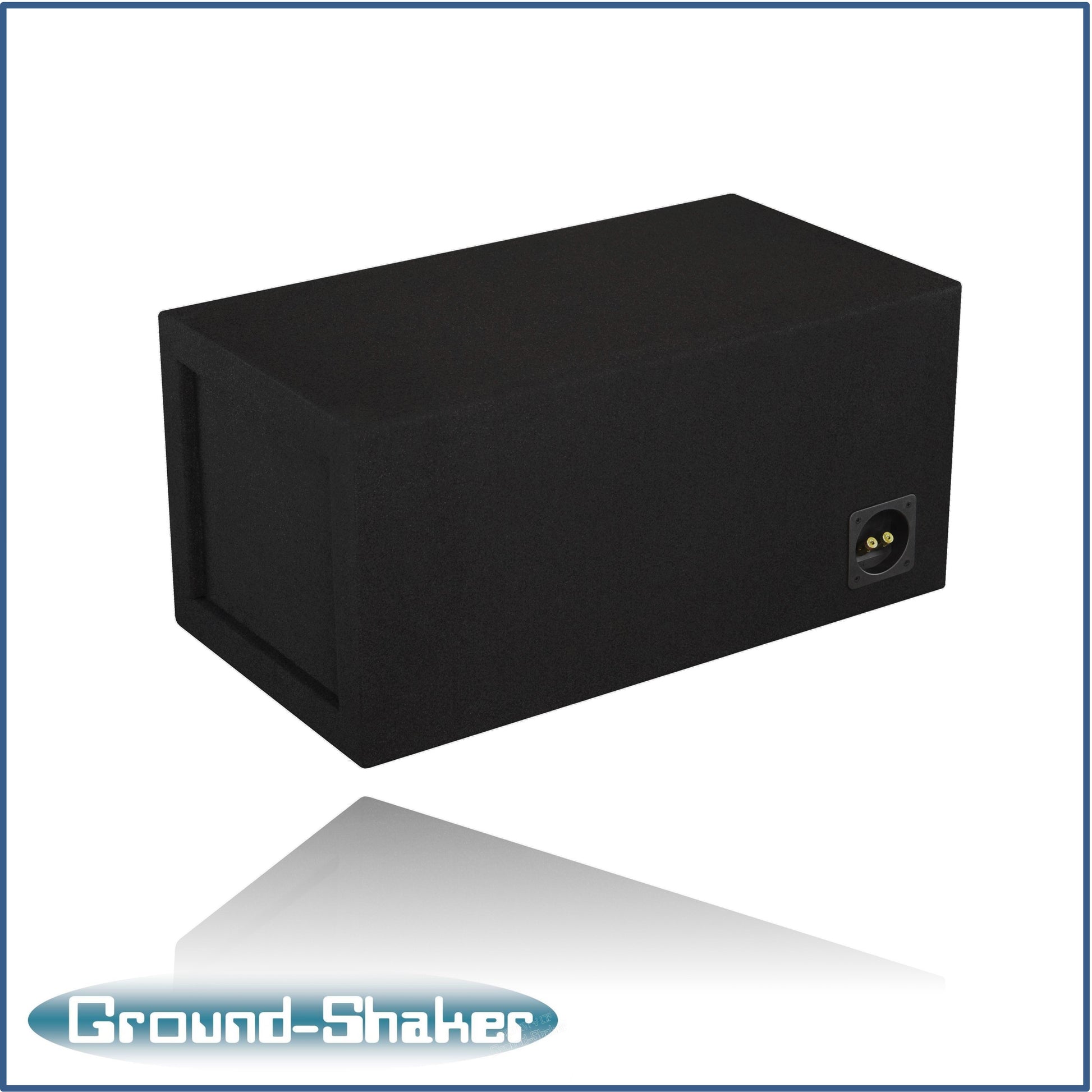

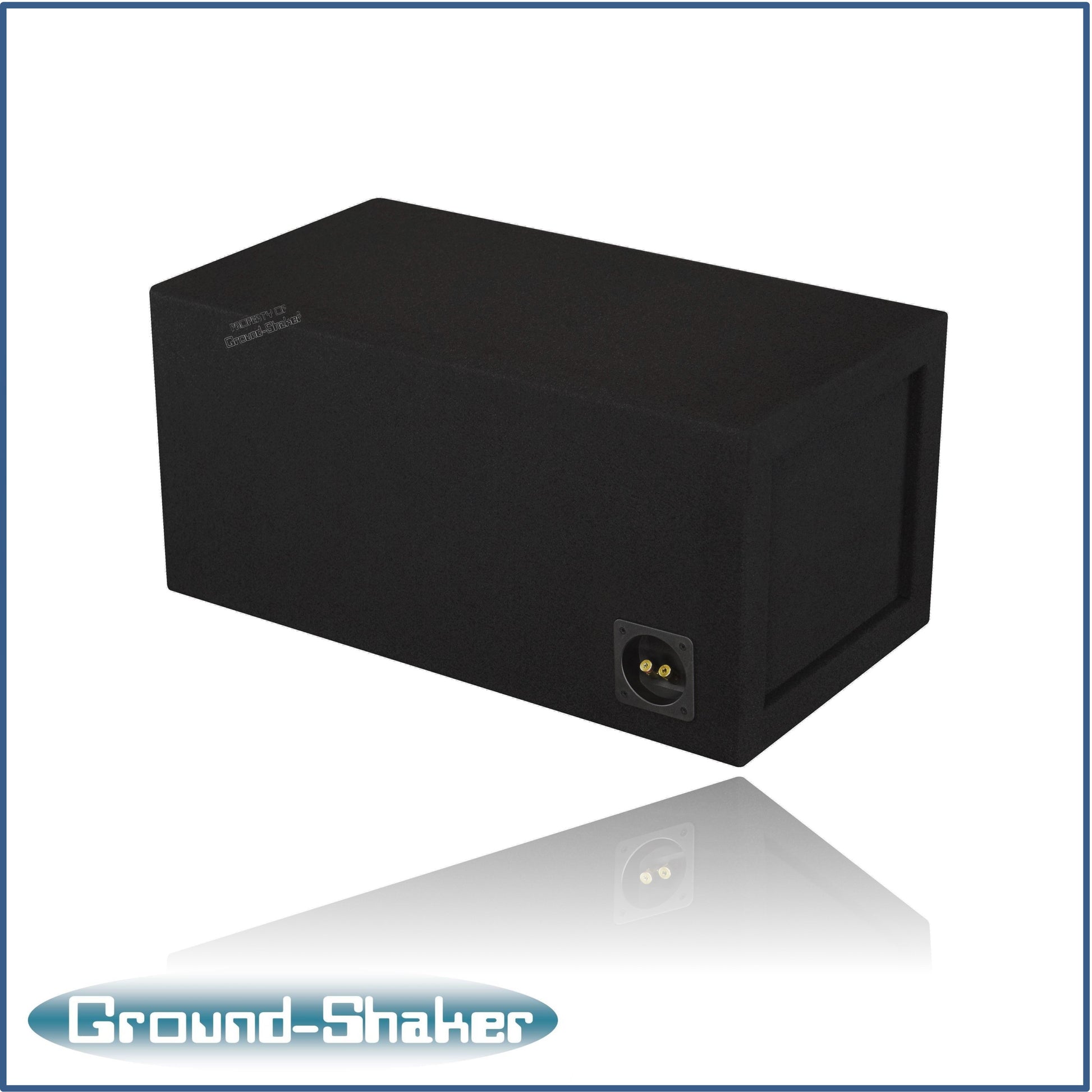

-1-SPRING LOADED TERMINAL
