PBP112

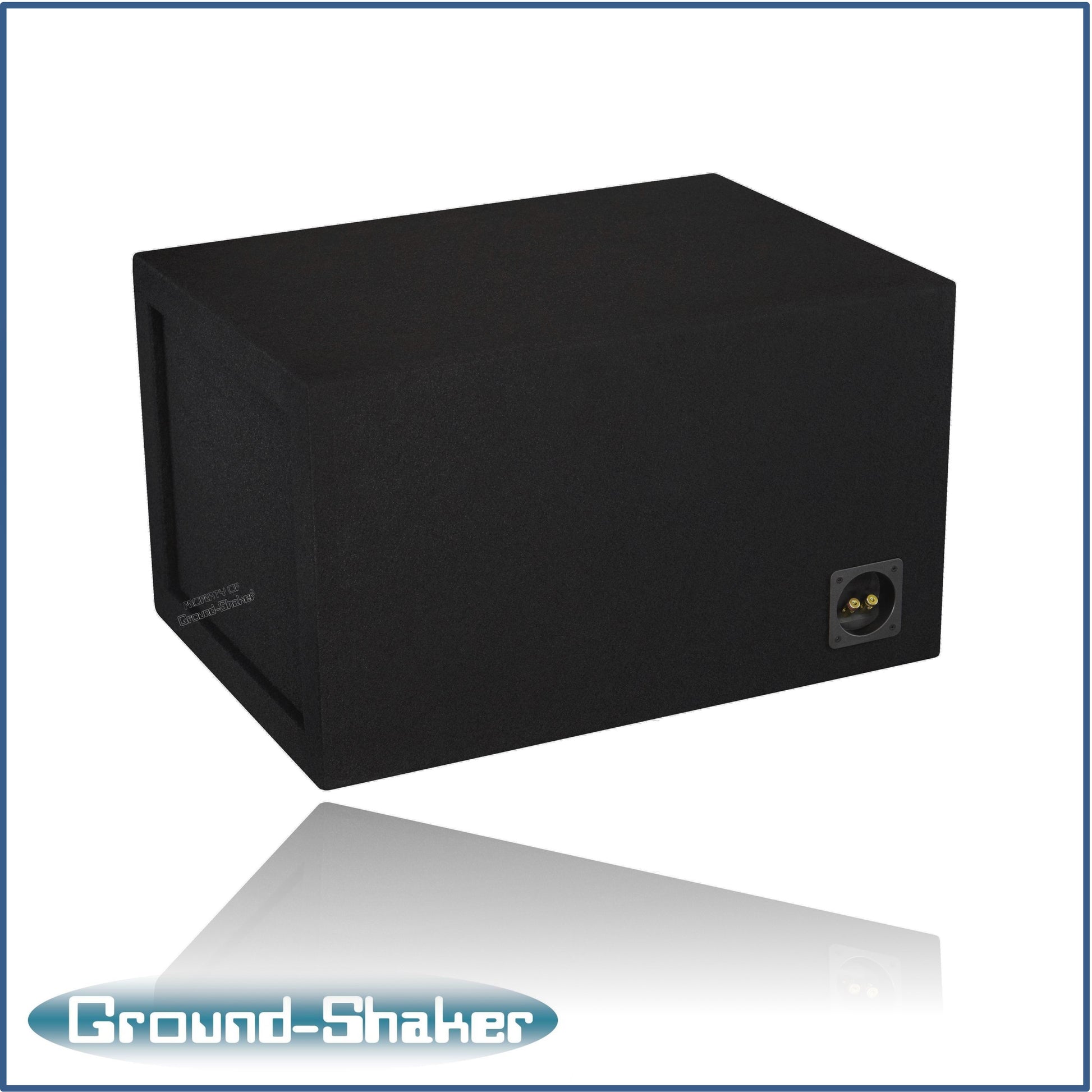

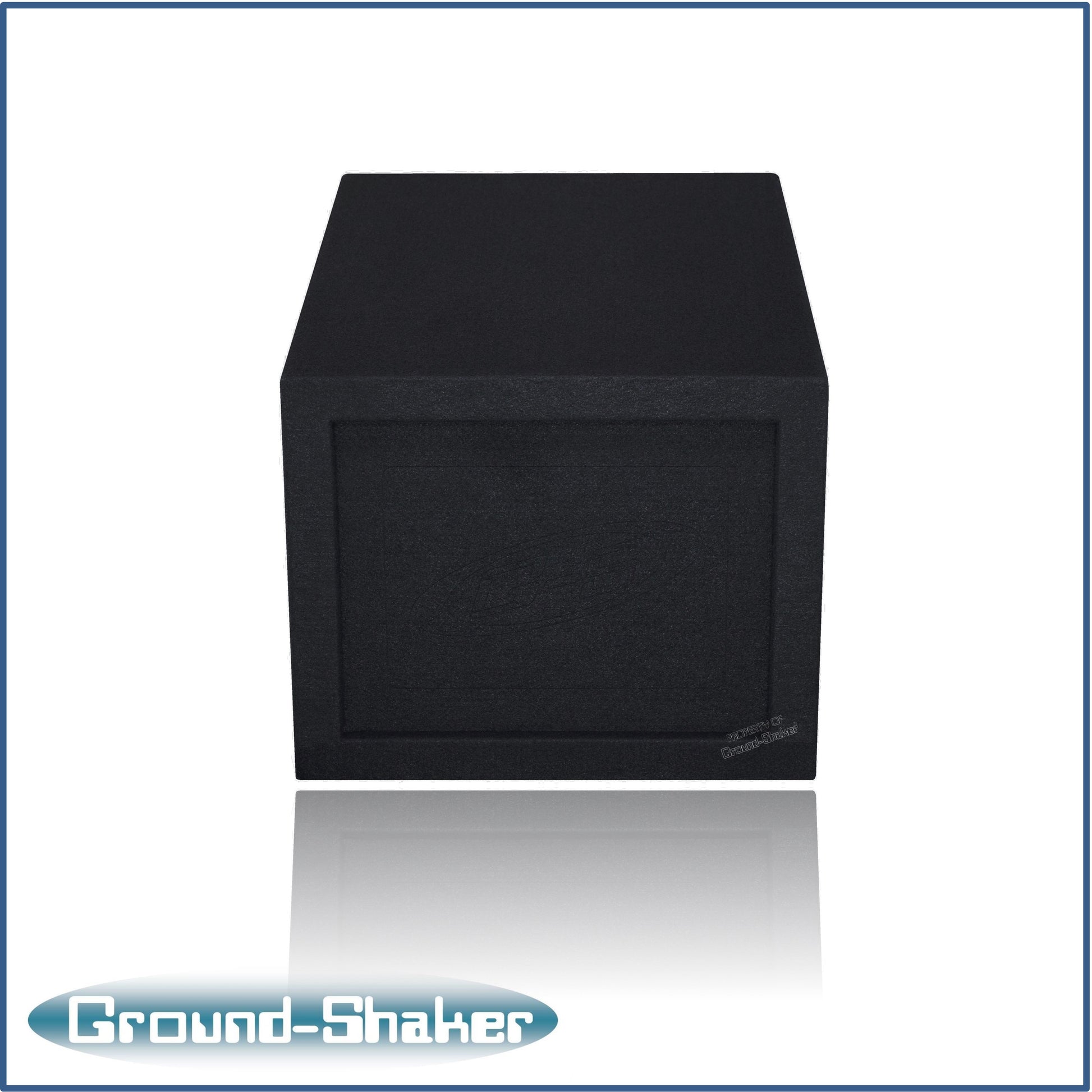

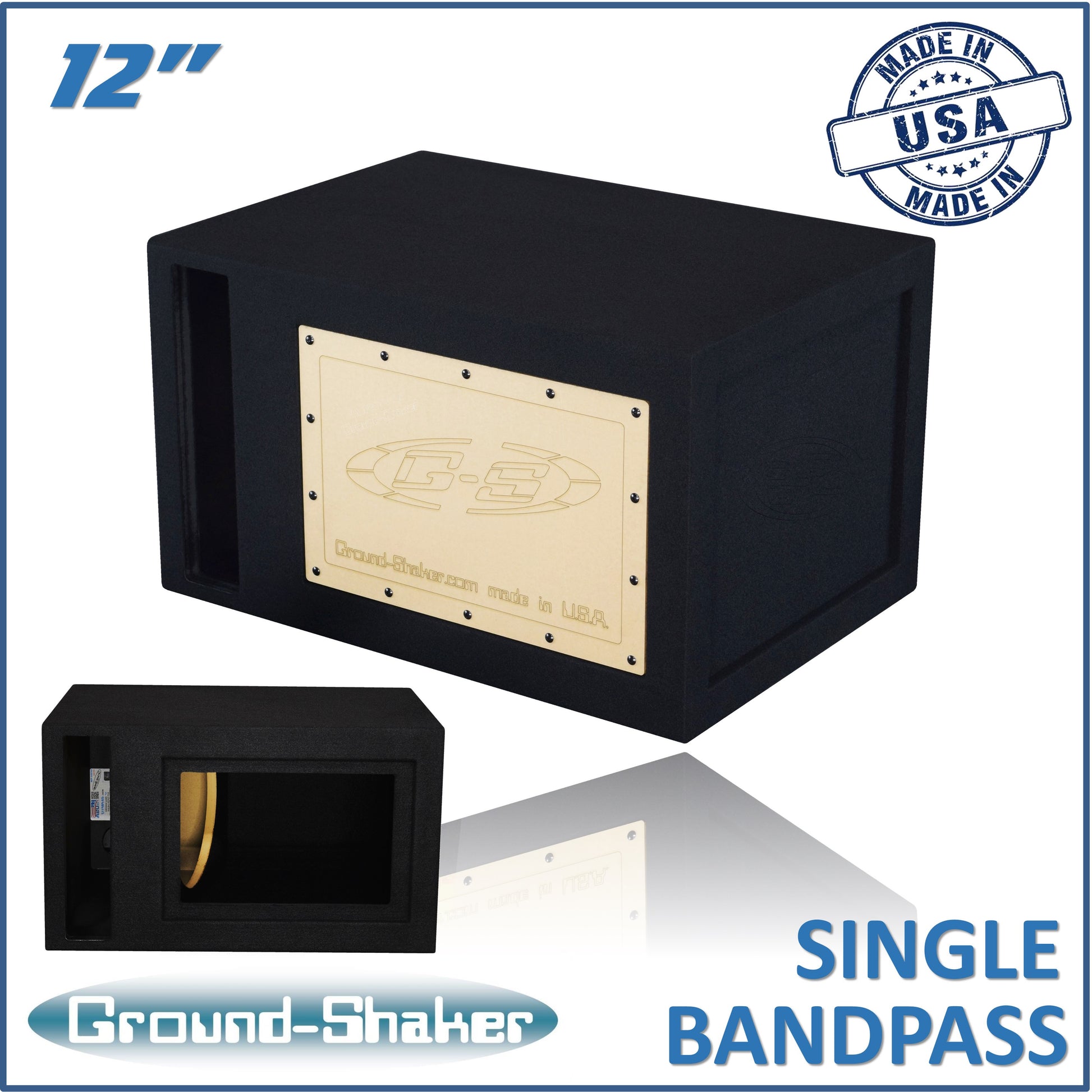

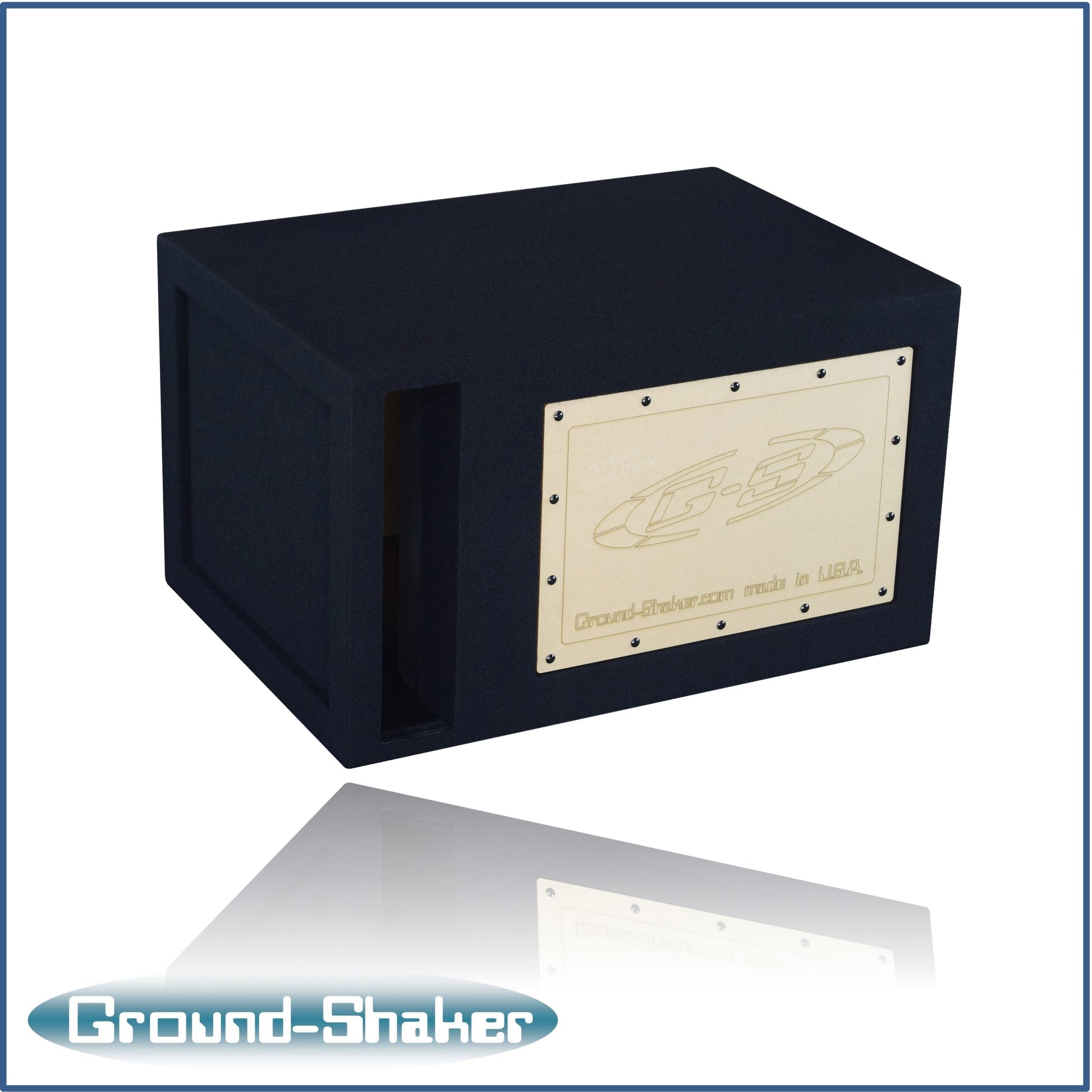

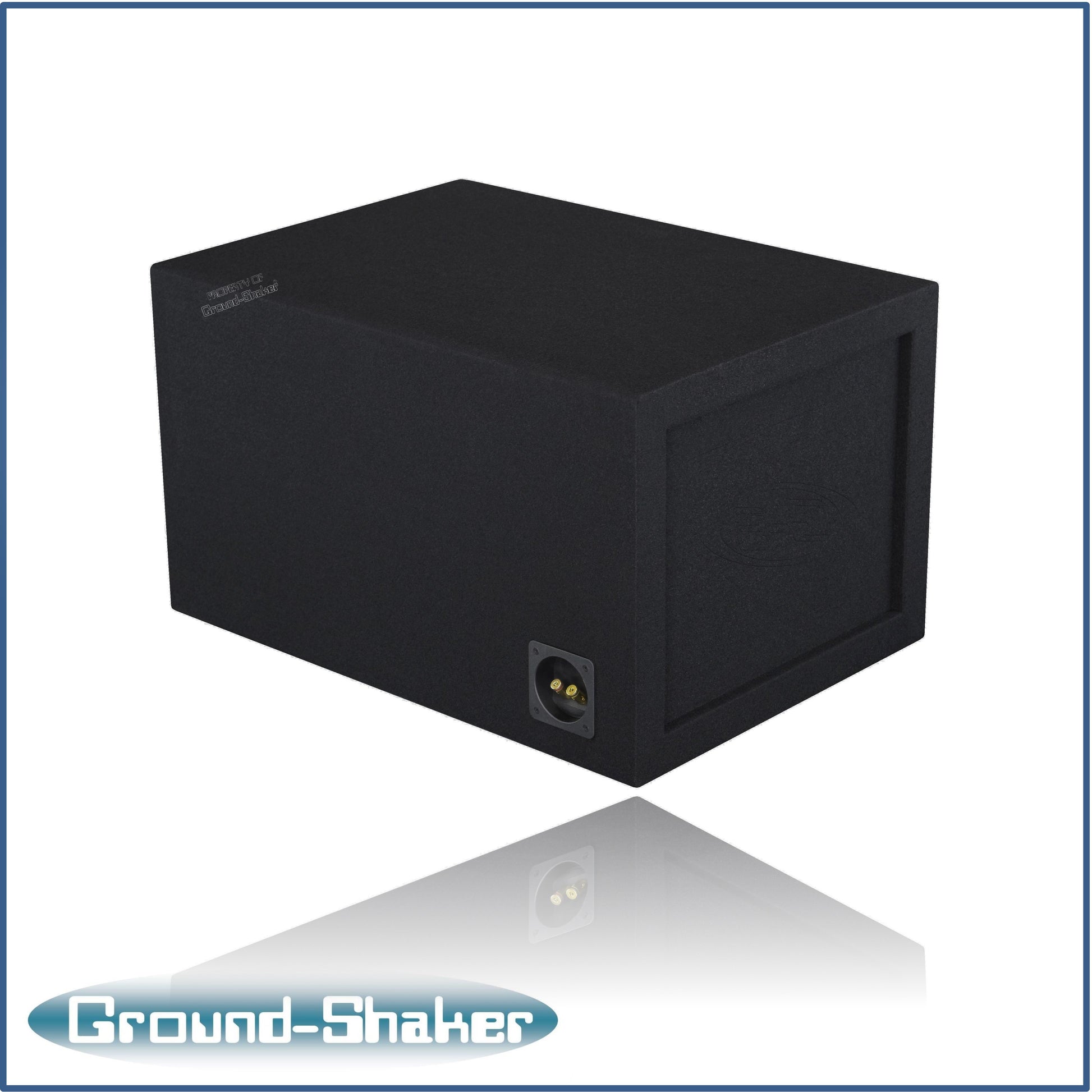

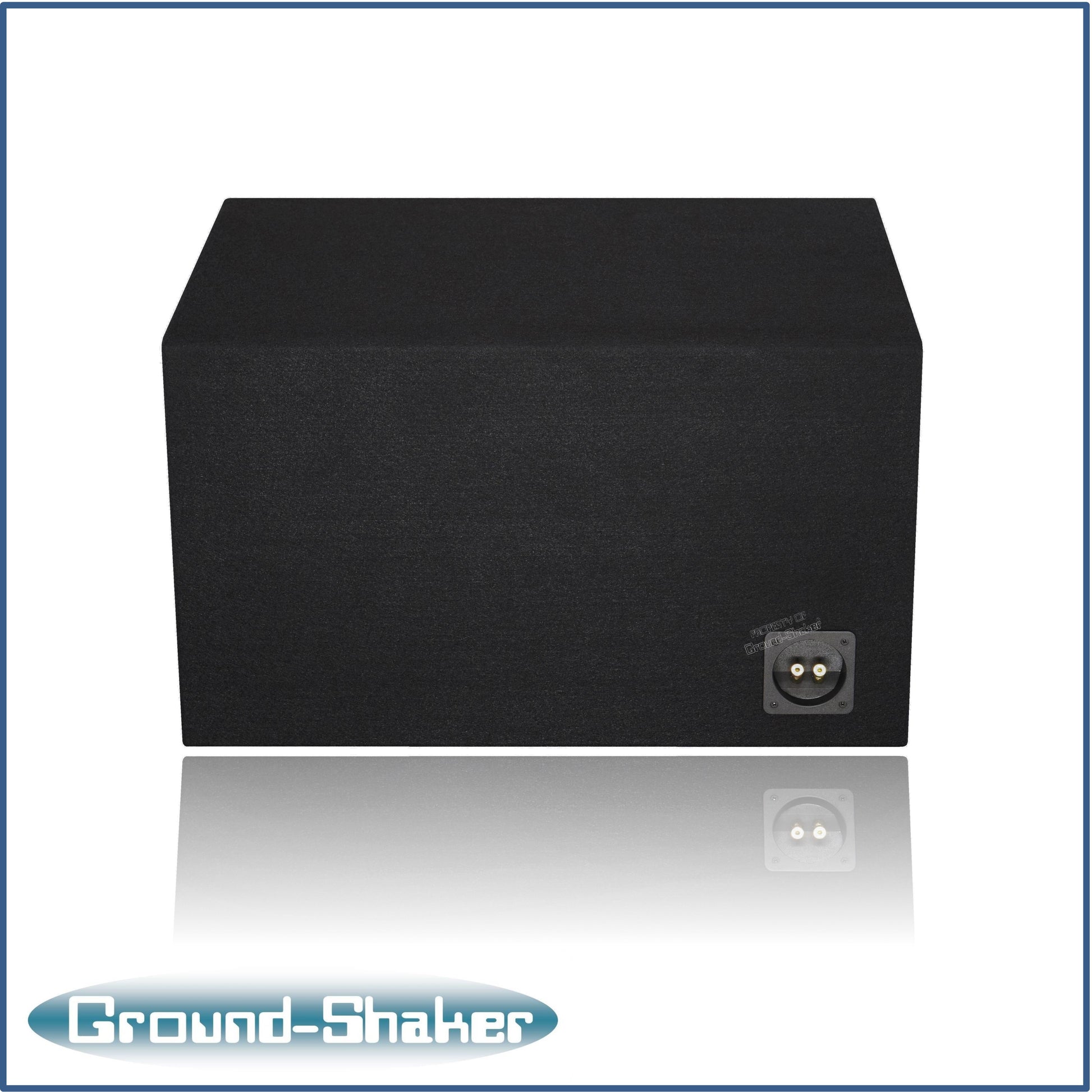

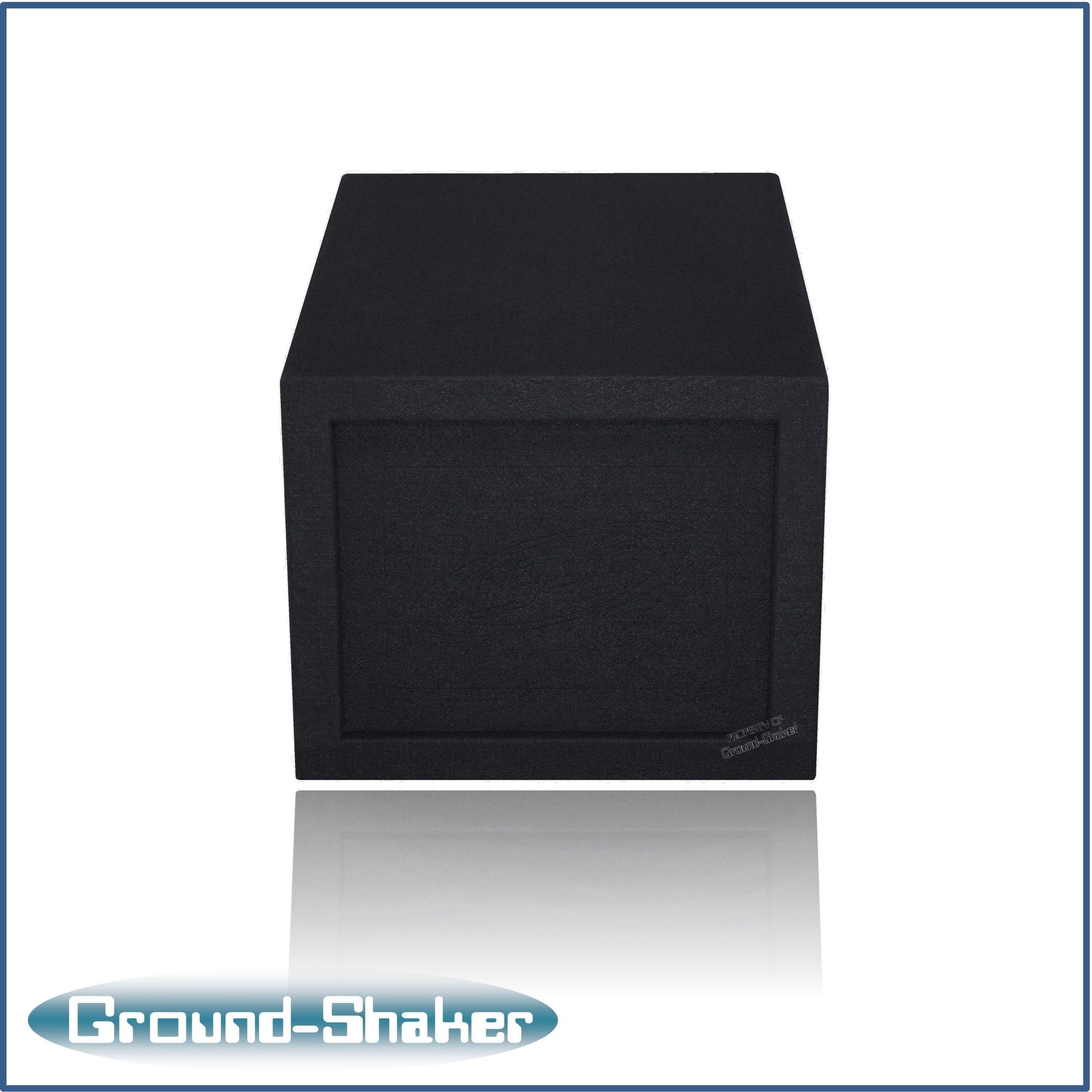

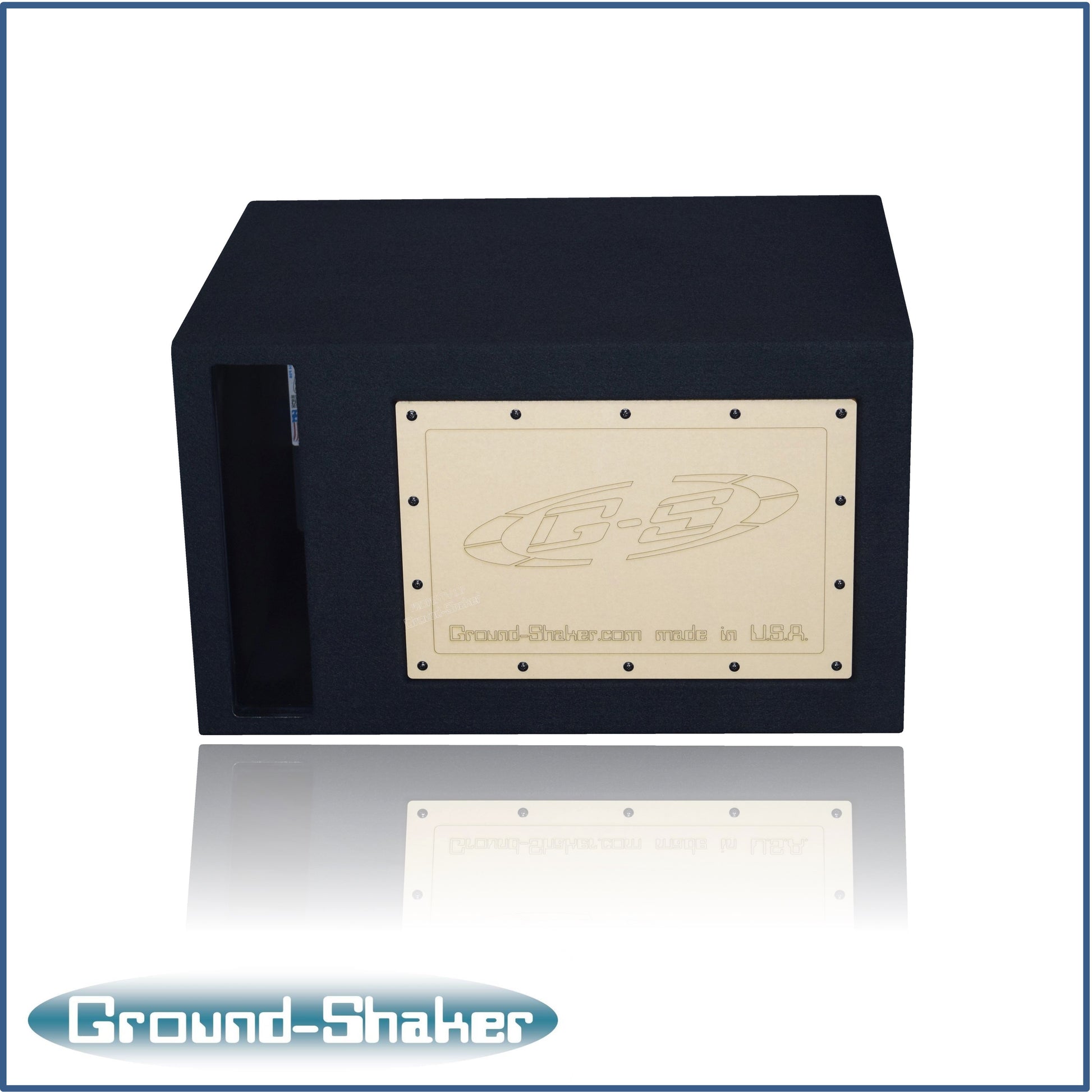

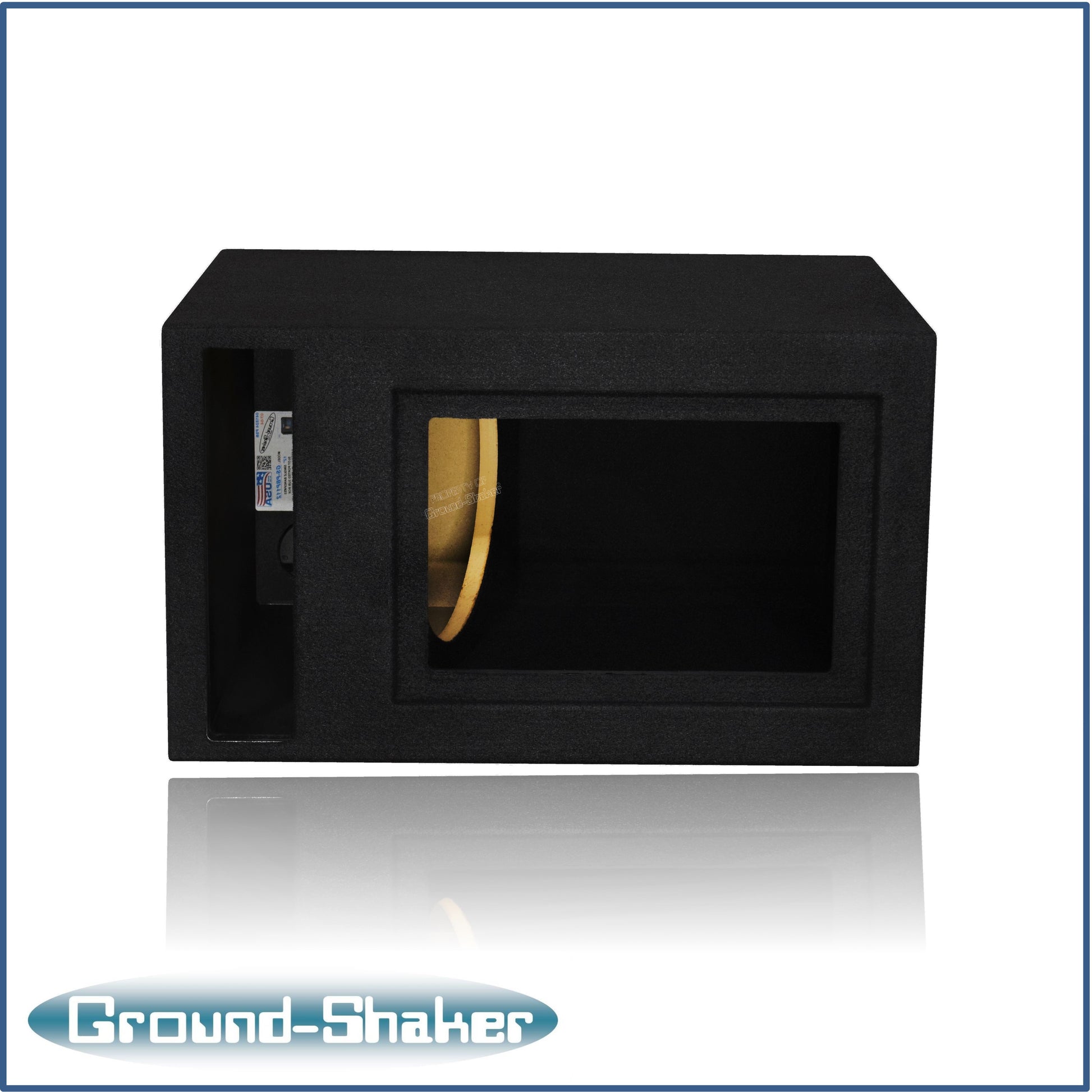

GROUND-SHAKER 12" SINGLE SLOT PORTED BANDPASS SUB BOX

SPECIFICATIONS:

-CUTOUT DIAMETER: 11 1/8"

-MAXIMUM SUBWOOFER OUTER DIAMETER 13 1/4”

-TOTAL AIR VOLUME: 2.85 FT^3

-SEALED CHAMBER AIR VOLUME: 1.69 FT^3

-TUNING FREQUENCY: 34-Hz

-1 SLOT PORT (DIMENSIONS: H-13 1/2” W-3” L-5”)

-WEIGHT: 40 LBS.

-MOUNTING DEPTH: 7 1/2" (MAXIMUM MAGNET WIDTH 6 1/2”)

DIMENSIONS:

-HEIGHT: 15”

-LENGTH: 25 1/5"

-DEPTH: 18"

CONSTRUCTION:

-5/8” HIGH QUALITY MDF WOOD

-CARPETED WITH DURABLE TRUNK LINER FINISH

-GLUED WITH HIGH QUALITY TITEBOND WOOD GLUE

-1-SPRING LOADED TERMINAL
